Carbine-Z Flush Mount Off Road Rectangular 7.5" LED Floodlight SKU: W-CZFF

18 Watts, 1620 Lumens
  • $49.99
  • $29.99
  • -15%: $25.49
  • You Save: $24.50
In Stock
  • image

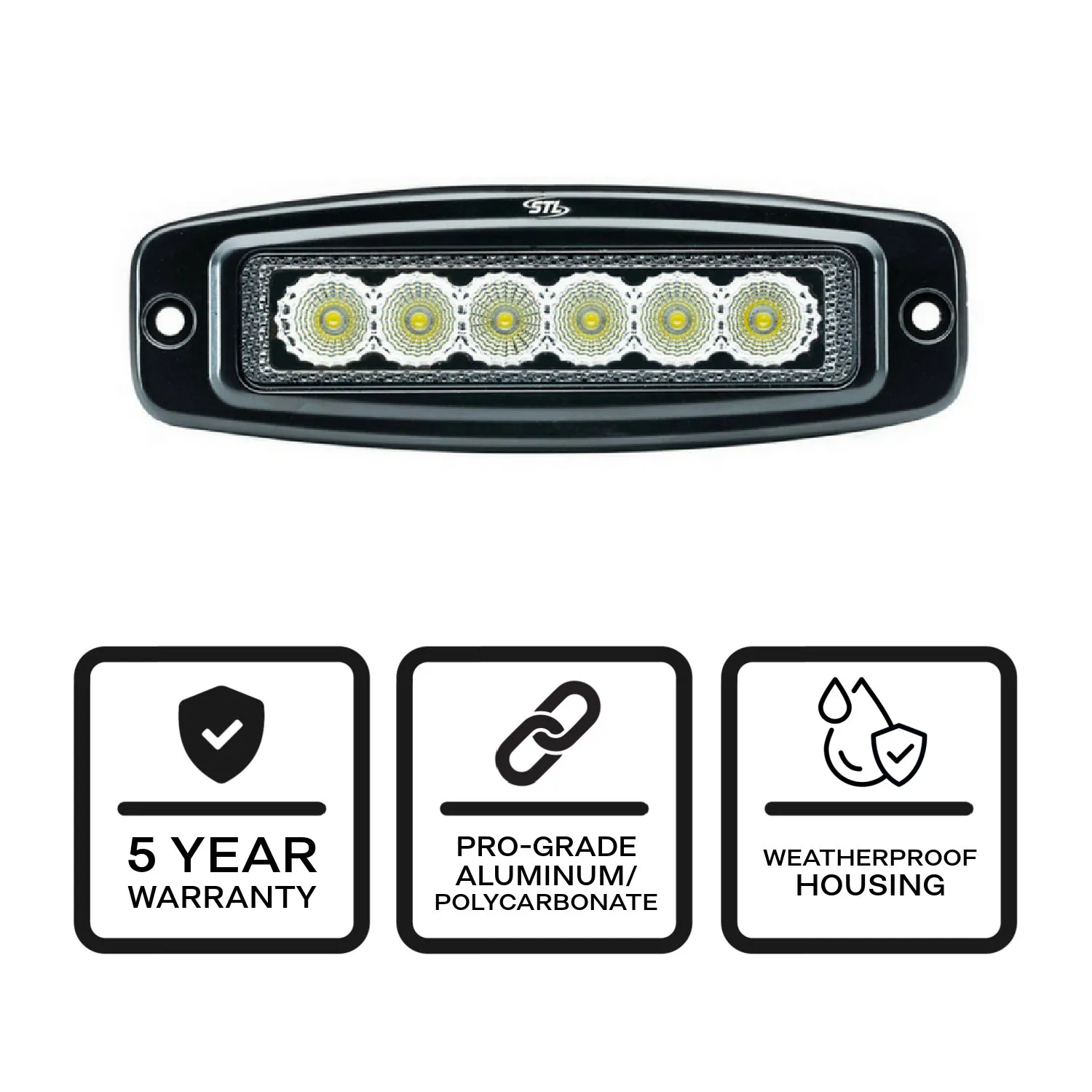

    5 Year Warranty*

  • image

    60 Day Return Policy*

  • image


  • image

    Free Shipping on orders $59+*

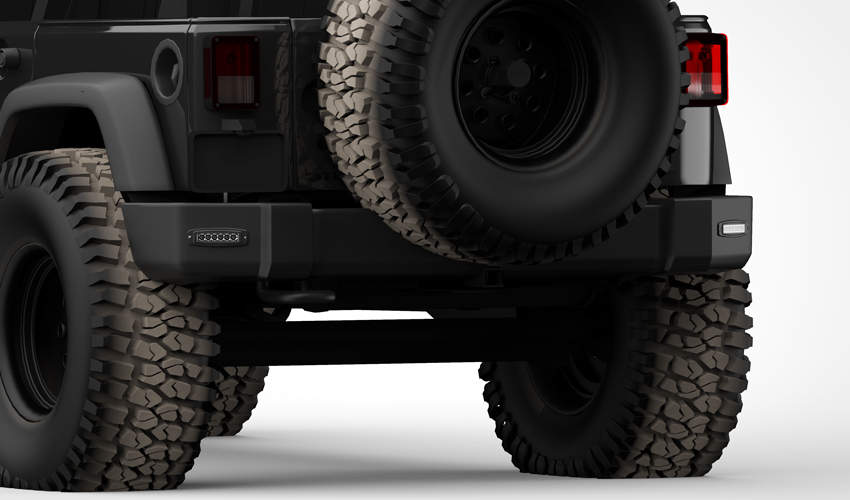

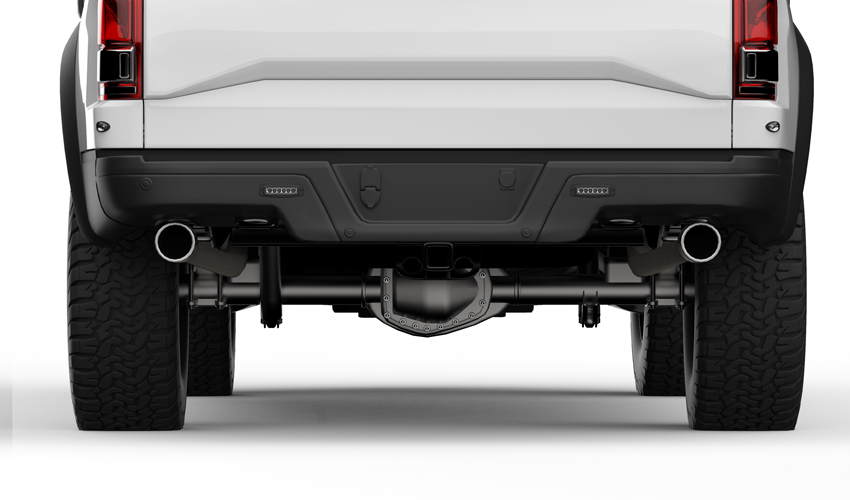

Application Photos



About The Carbine-Z® Flush Mount Off Road Rectangular 7.5" LED Floodlight

The Carbine-Z 7.5” Rectangular Flush Mount Off Road LED Work Light comes equipped with flood light optics outputting a 90 degree flood beam spread with 1,620 lumens of bright white light output. With 6 LEDs rated at 3-watts per LED, this unit provides ample lighting at night for your off road vehicle lighting needs.
This unit also makes a great LED work light. With its flush mount capability, once installed it looks like a LED surface mount work light. Built in screw holes make installation simple and very professional. With is compact housing and flush mount concept, the unit is extremely low profile.
This unit also has an optional rubber flange for mounting that can be purchased separately. This rubber mount is angled at about 45 degrees so you can mount your 7.5” rectangular LED work light to your vehicle at an angle to provide downward or upward lighting from your vehicle.
  • Powered by 10-30V
  • (6) 3-watt LEDs
  • 1,620 Lumens
  • Flood Optics - 18-watts Intensity

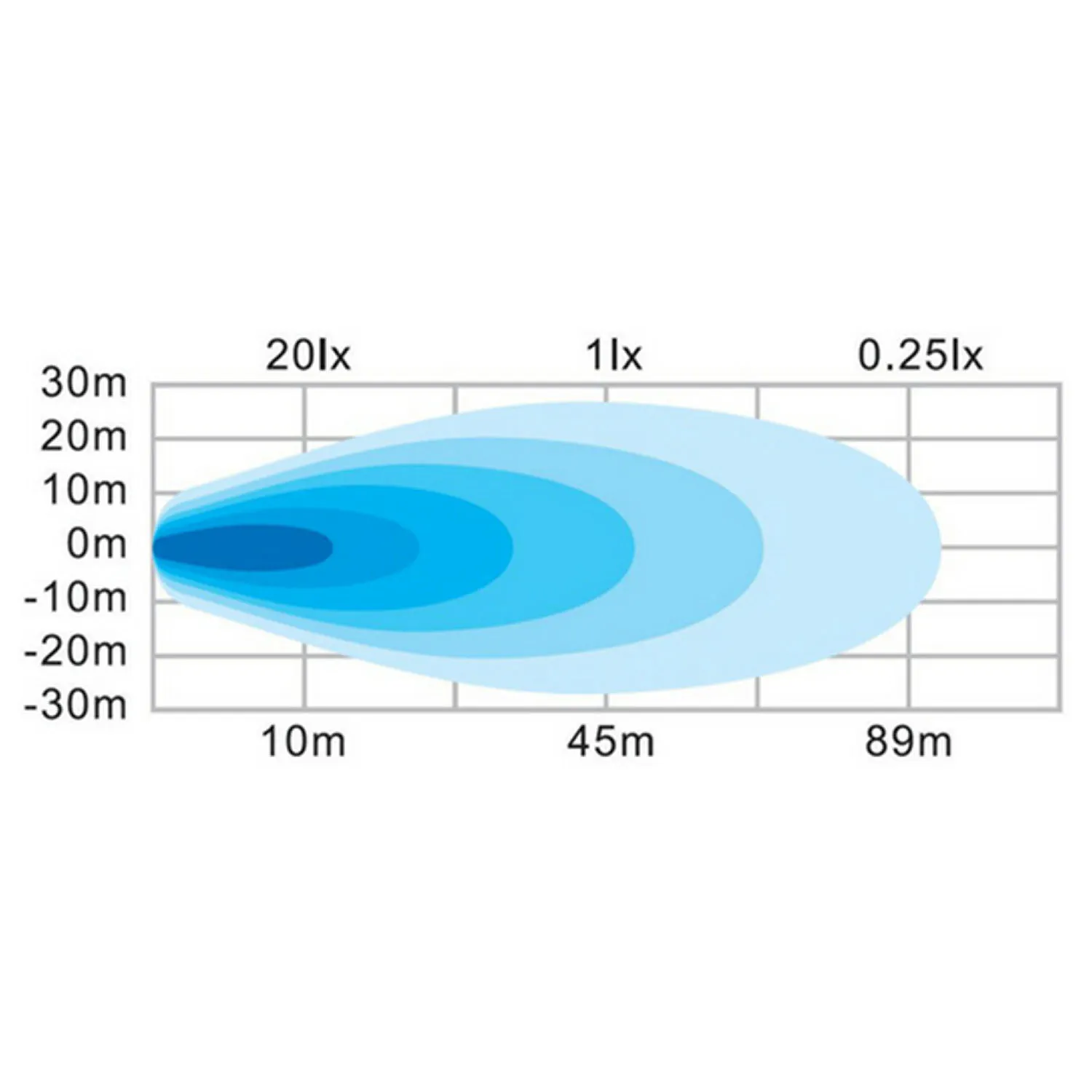

  • Flood Beam: 90 degrees
  • Color Temp: 6000K
  • Amp Draw: 1.46A at 12V, 0.75A at 24V
  • RoHS compliant
  • Waterproof IP67 housing
  • Steady burn floodlight functionality
  • Flush mount LED work light
  • Includes 12" of cable
  • Optional 10 ft relay harness with On/Off switch available for purchase

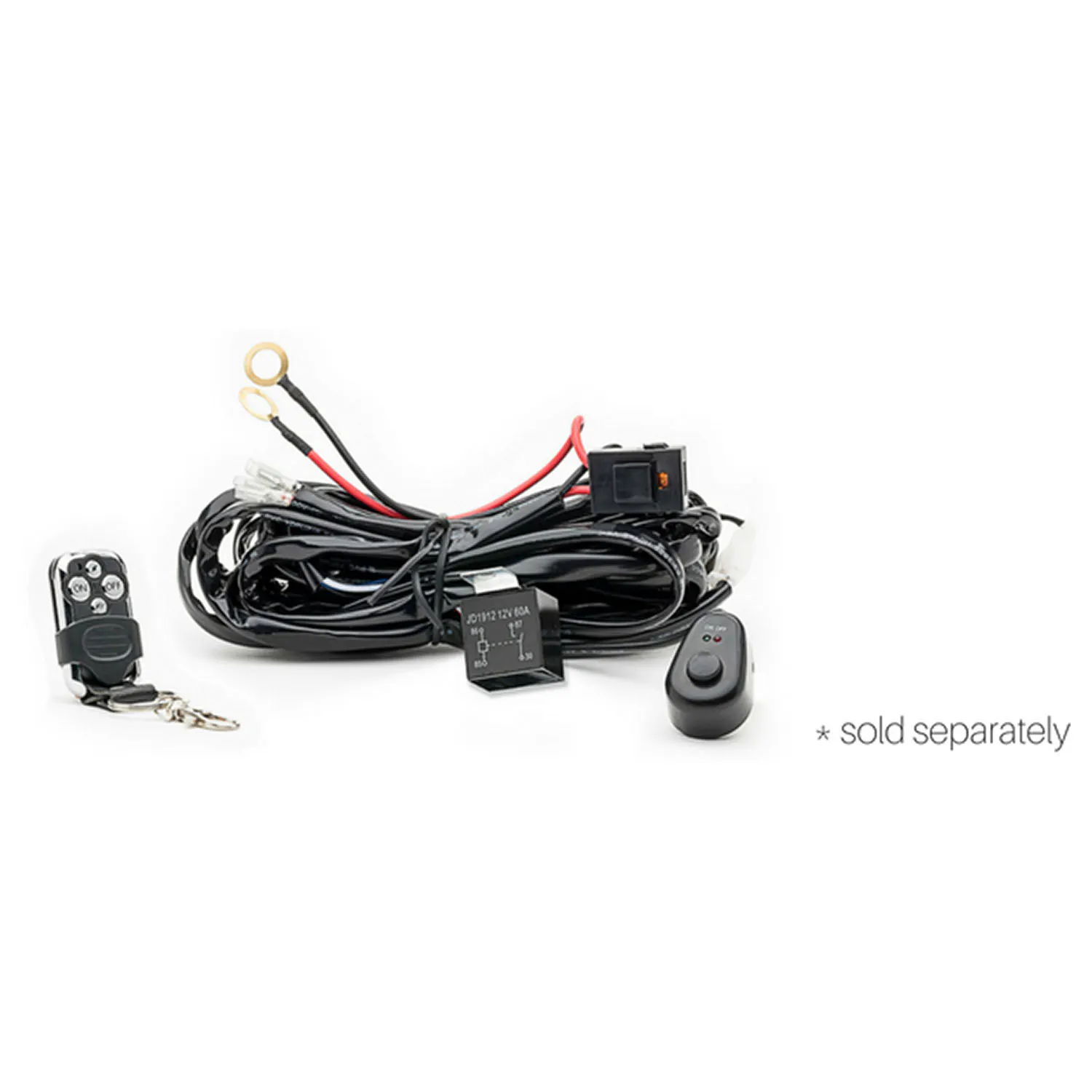

  • Optional 10 ft relay harness with wireless remote and flash capability available for purchase
      *See Terms and Conditions

Mounting options


Discount packs available
