K-Force TIR 55 Full Size Tow LED Light Bar (Dual Memory) SKU: F-TKFTOW55

  • SAE Certification No. 201094
  • RoHS Certification No. ENC171106GZ19
  • U.S. Patent No. D835535, D835565, D797360
(104) 3w MaxGen LEDs

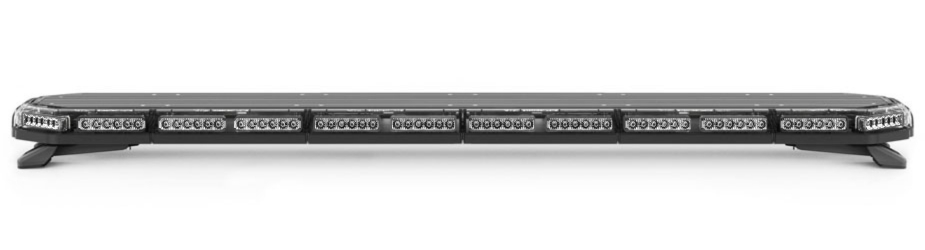

K-Force 55 TIR Wrecker LED Tow Light Bar
K-Force 55 TIR Wrecker Tow LED Light Bar Angle View
K-Force 55 TIR Wrecker Tow LED Light Bar Alley Light
K-Force 55 TIR Wrecker Tow LED Light Bar Upside Down Angle View
K-Force 55 TIR Wrecker Tow LED Light Bar Control Box

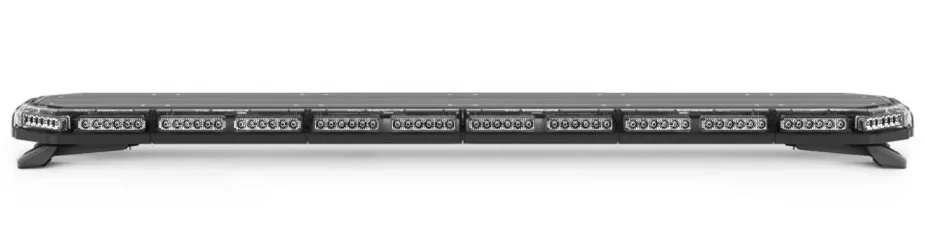

K-Force 55 TIR Wrecker LED Tow Light Bar
K-Force 55 TIR Wrecker Tow LED Light Bar Angle View
K-Force 55 TIR Wrecker Tow LED Light Bar Alley Light

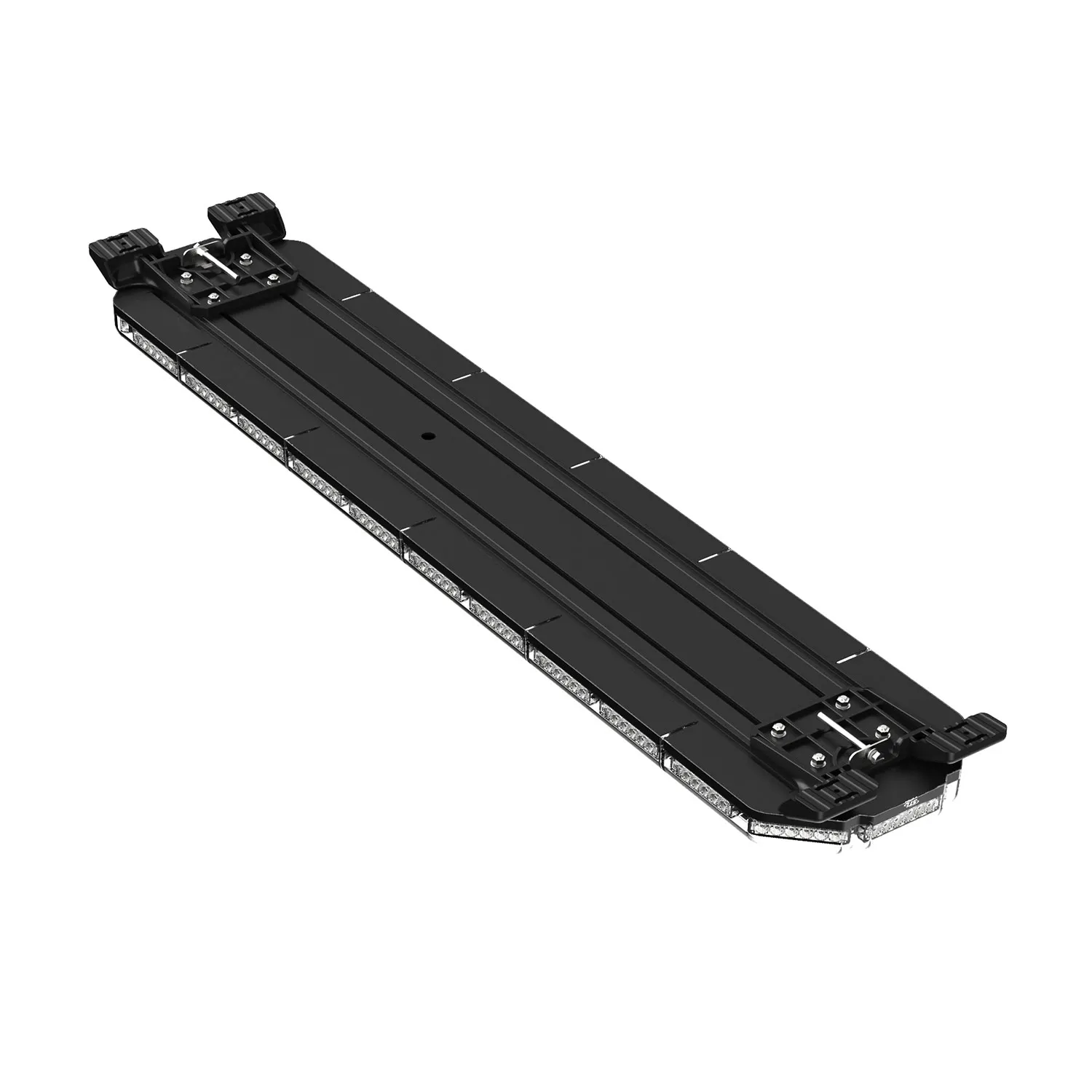

K-Force 55 TIR Wrecker Tow LED Light Bar Upside Down Angle View
K-Force 55 TIR Wrecker Tow LED Light Bar Control Box

INTERACTIVE PLAYER
Customize this Light Bar
  • $859.99
  • $769.99
  • You Save: $90.00
i
i
i
i
i
In Stock
ADD TO CART
Add to WishList
  • image

    5 Year Warranty*

  • image

    60 Day Return Policy*

  • image

    Eclipse Optic Technology

  • image

    $9.99 Shipping Per Bar

Application Photos

K-Force TIR 55 Inch LED Tow Truck Light Bar Full Size Light Bar
K-Force TIR 55 Inch LED Tow Truck Light Bar Full Size Light Bar Top
K-Force TIR 55 Inch LED Tow Truck Light Bar Full Size Light Bar Back

Videos

FLASH PATTERNS

PRODUCT SERIES

Specifications

About The K-Force® TIR 55 Full Size Tow LED Light Bar (Dual Memory)

The K-Force 55 TIR Full Size Tow Light Bar is a specialized product for customers in the towing and wrecker industry.  Like our standard 55” light bar, the K-Force 55 Tow comes fully equipped with 104 powerful 3-watt MaxGen® LEDs, a 6 module arrow stick, cruise mode, and complete 360-degree roadside visibility. Where it differs, however, is the addition of rear worklights and Stop / Tail / Turn functionality to better indicate your movements on the road.

Not only is this LED Tow Bar built to perform, it’s also built to last.  After tough vibration, corrosion, moisture, temperature, dust, and photometric testing in an independent government facility, our never ceasing focus on quality has paid off. The K-Force 55 TIR Tow Light Bar has earned SAE J845 Certification – proof that this bar can handle anything the road throws at it.

With the new dual memory modes, you can program up to 2 different patterns for a quick switch back and forth between memory 1 and memory 2 using the mode button(s).

Redesigned with a sleek polycarbonate / aluminum hybrid housing to fully conceal every module, the new K-Force 55 TIR Tow Light Bar is a must have for anyone in the towing industry.

Rear Work Lights Description:

---Rear work lights come standard with activation via the Alley Button. There is not a separate on/off button for the rear work lights independently.

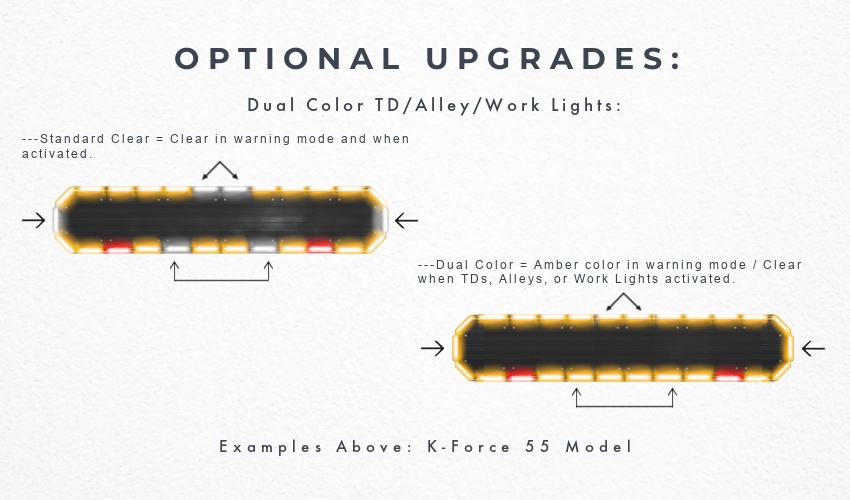

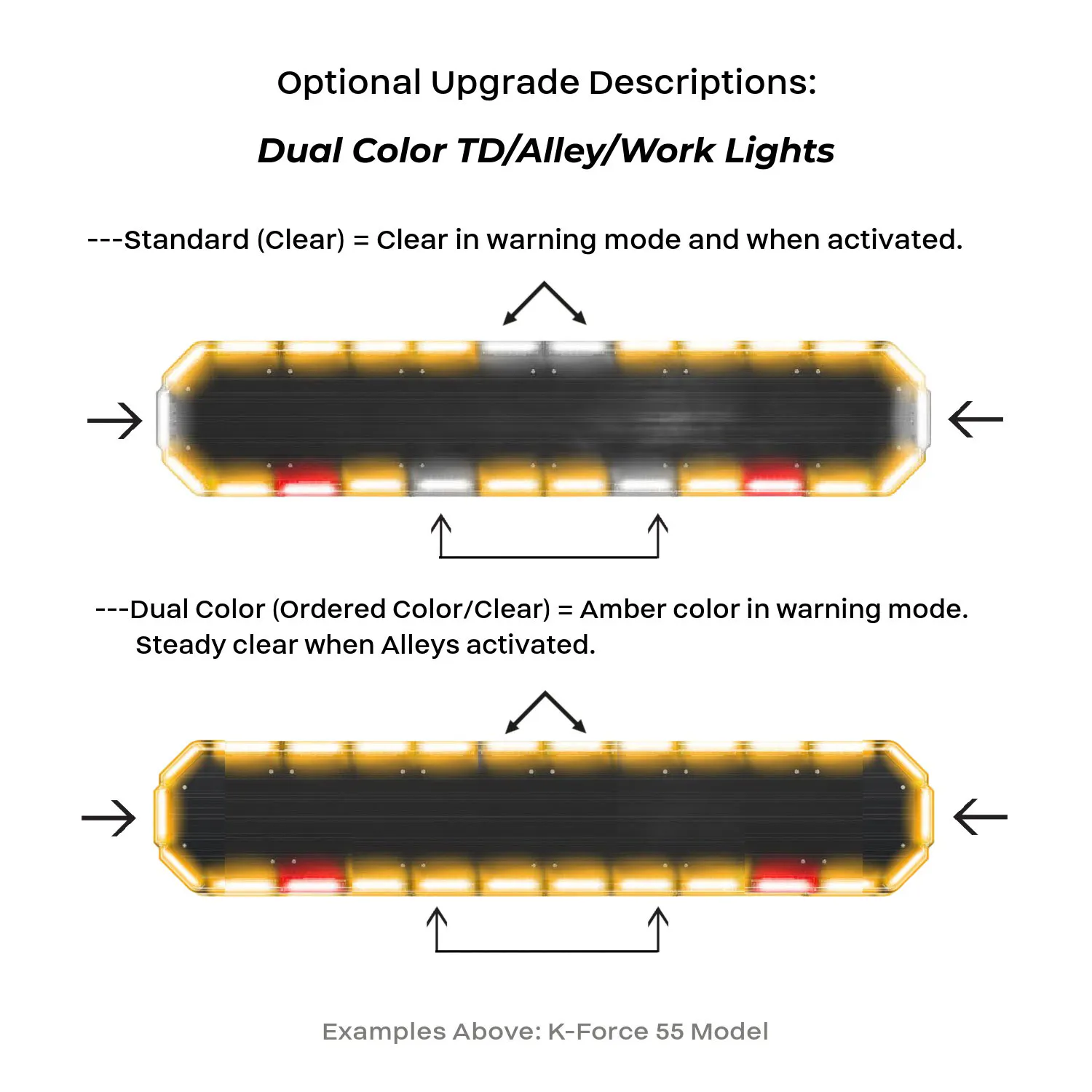

Optional Upgrade Descriptions:

TD/Alley/Work Light Option:
---Standard Clear = Clear in warning mode and when activated.
---Dual Color = Color ordered in warning mode / Clear when TDs and alleys and rear work lights are activated.

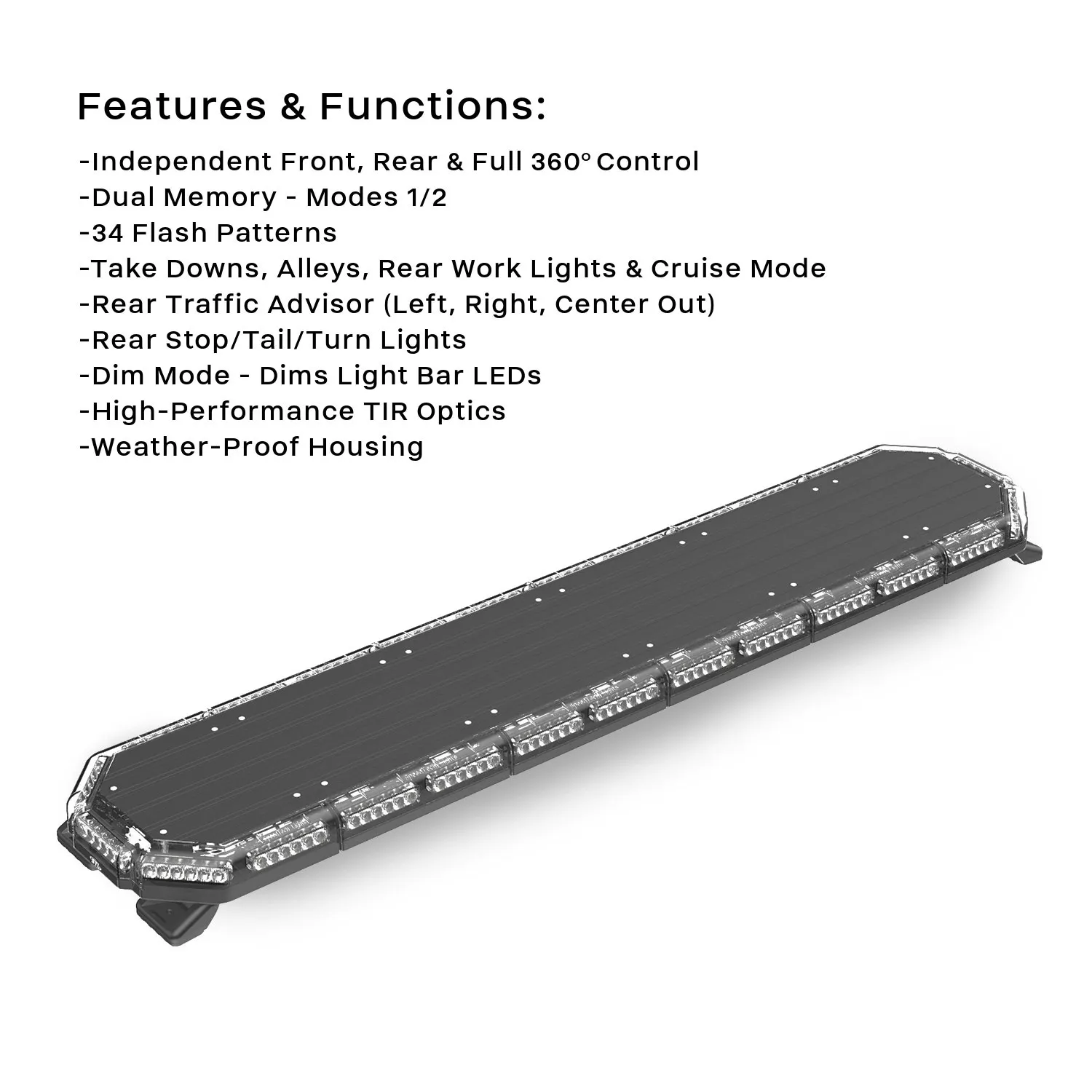

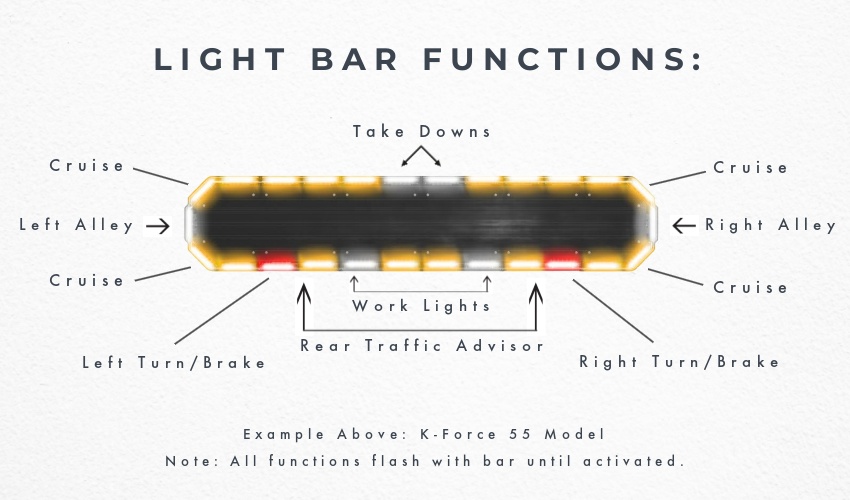

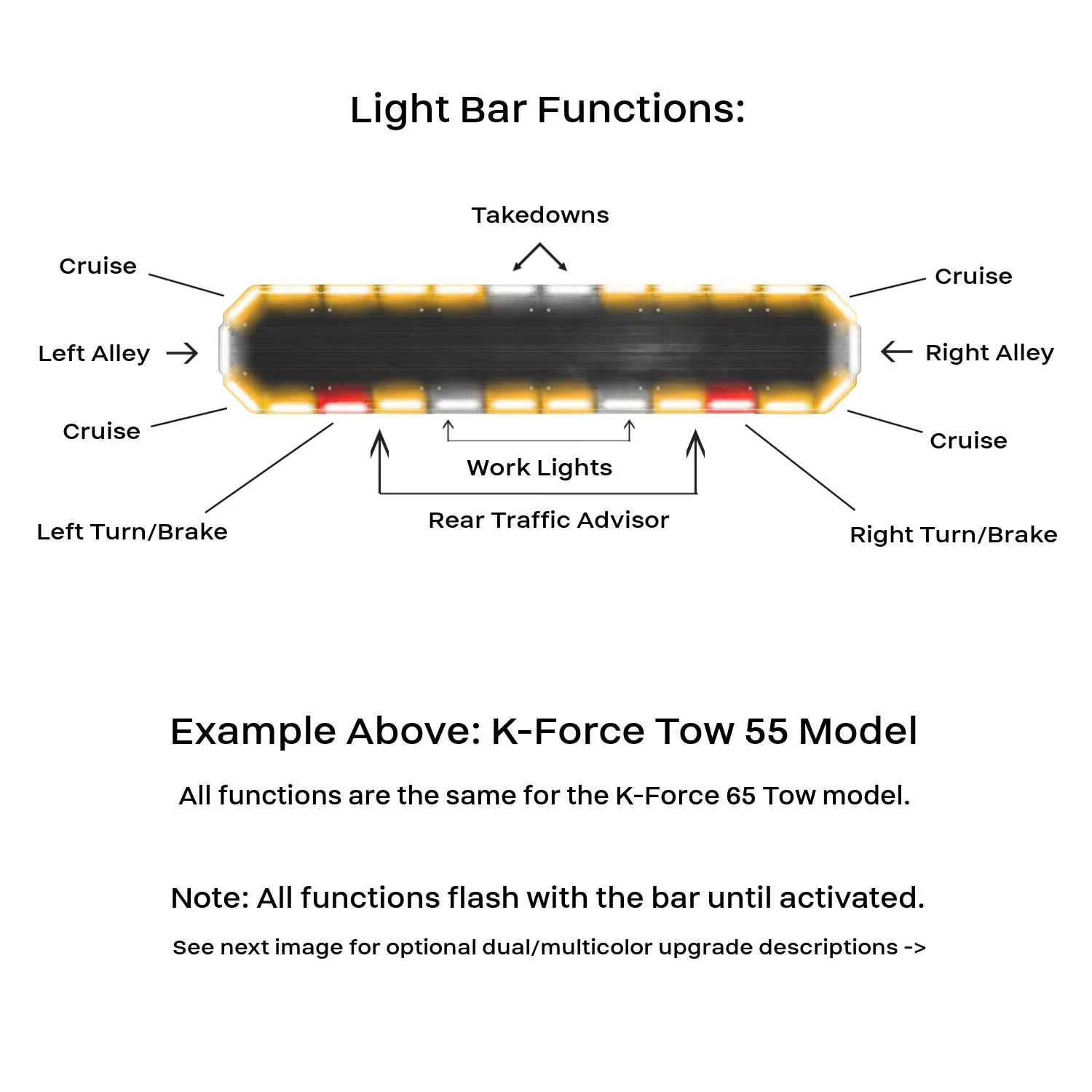

Features:
  • NEW Dual Flash Pattern Memory Modes
  • Powered by 12V

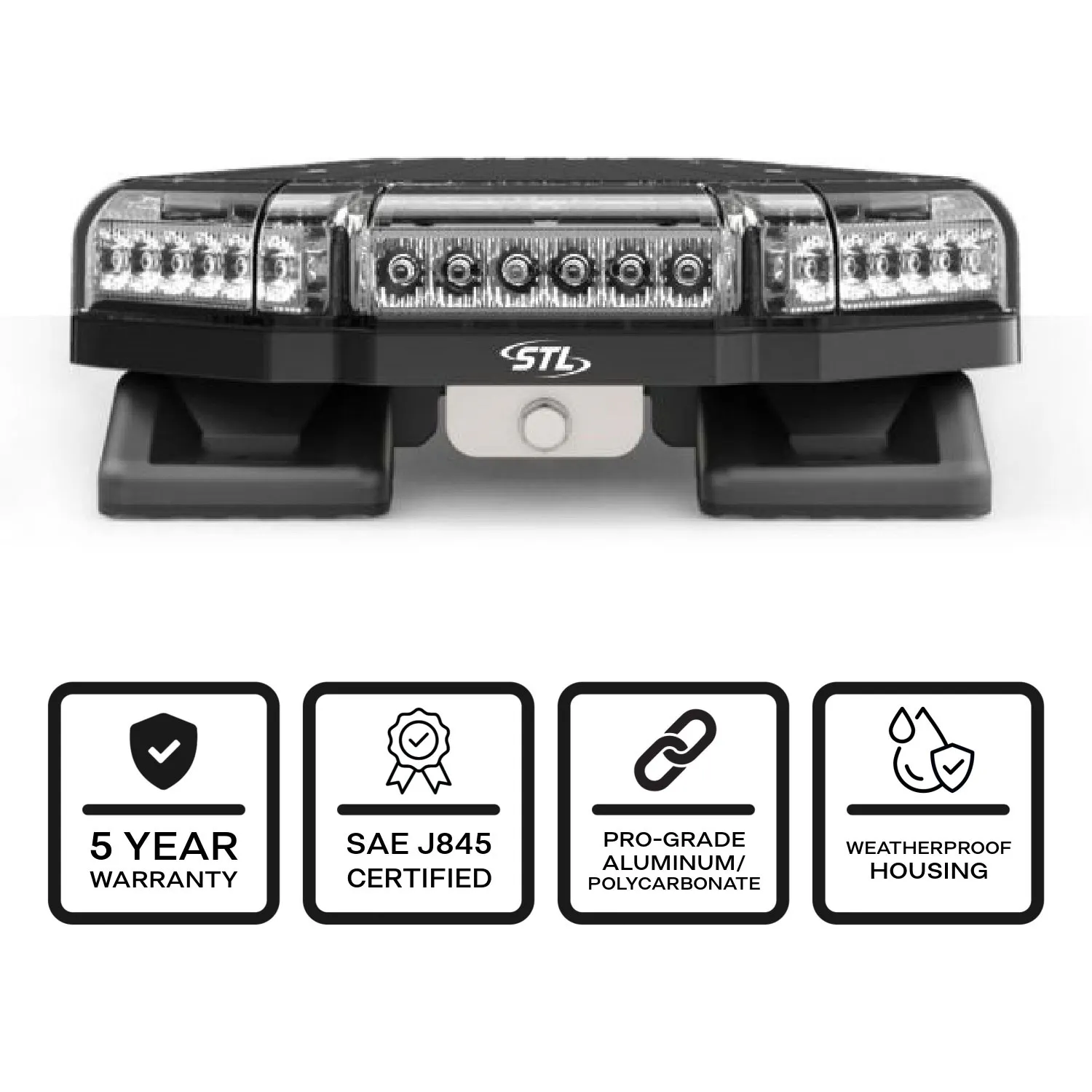

  • SAE J845 Certified

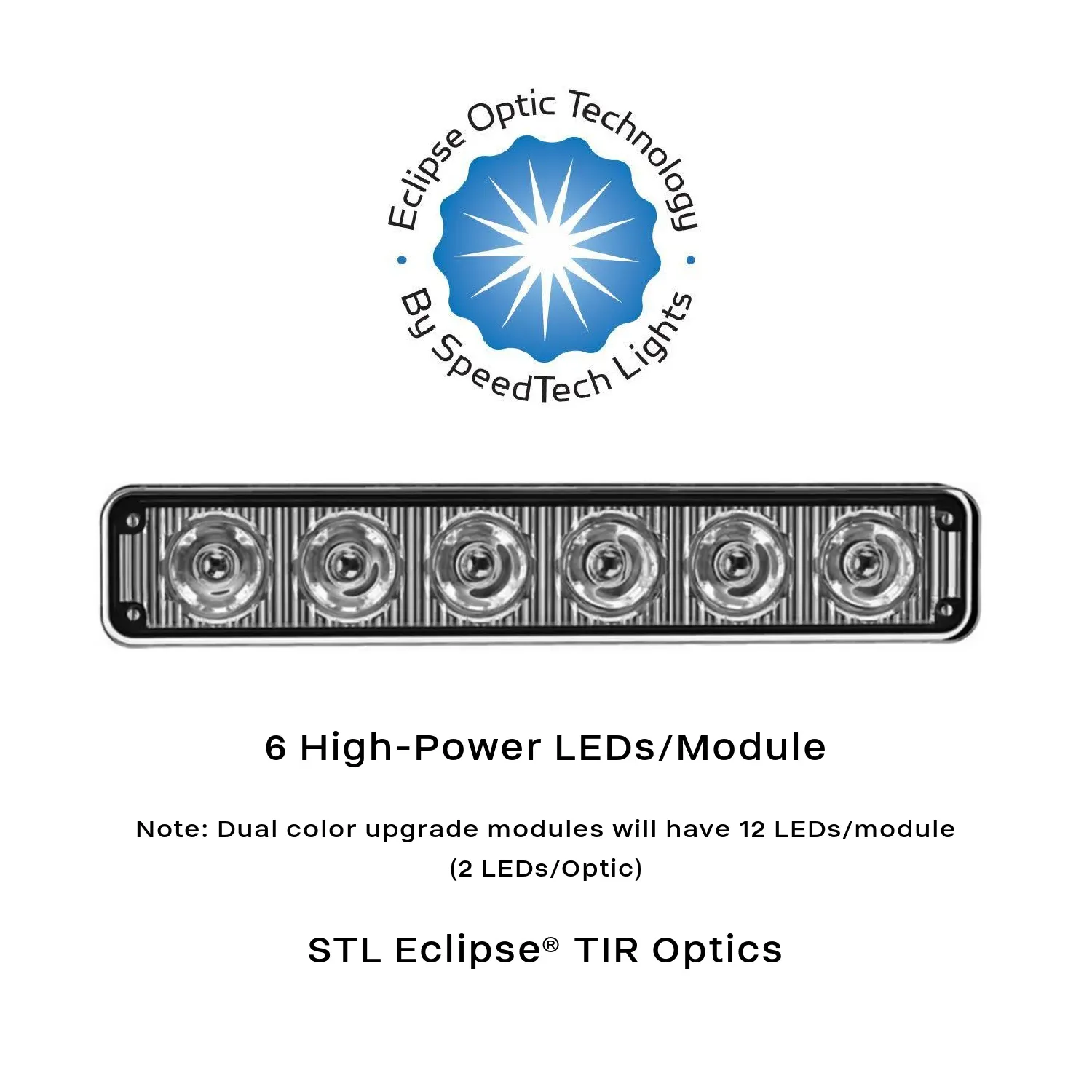

  • Patented LED EclipseOptic Technology - TIR Optics
  • 104 total 3-watt MaxGen LEDs
  • 30 available flash patterns
  • LED take-down and alley lights
  • Rear LED Work Lights
  • Built in amber arrow stick
  • Upgradable multicolor traffic advisor functionality
  • Arrow stick directions: right, left, center out
  • Stop/Tail/Turn functionality
  • Non-volatile memory recalls last flash pattern
  • Lifespan of up to 100,000 hours
  • Optional Supreme Control Box sold separately
  • 12' of cable from light bar to connector
  • 12.5' of power cable from connector
  • 12.5' of auxiliary cable from connector
  • Multiple vehicle specific gutter bracket options sold separately
  • Max 18.2 Amp draw

*See Terms and Conditions

Night Mode w/ Optional Control Box (Sold Separately):
---Night Button Use = Toggle Night Mode on/off using Night Button while not hard-wiring the white cable.
---White Cable Use = Hardwire the free-standing white cable to your headlight +12VDC line to automate this feature. NOTE: This deactivates the usability of Night Button. Once hardwired, the Night button ceases to function. Make sure Night button is NOT activated before wiring white cable otherwise Night button will remain activated/illuminated.

What's included

  • K-Force 55 TIR Tow Light Bar

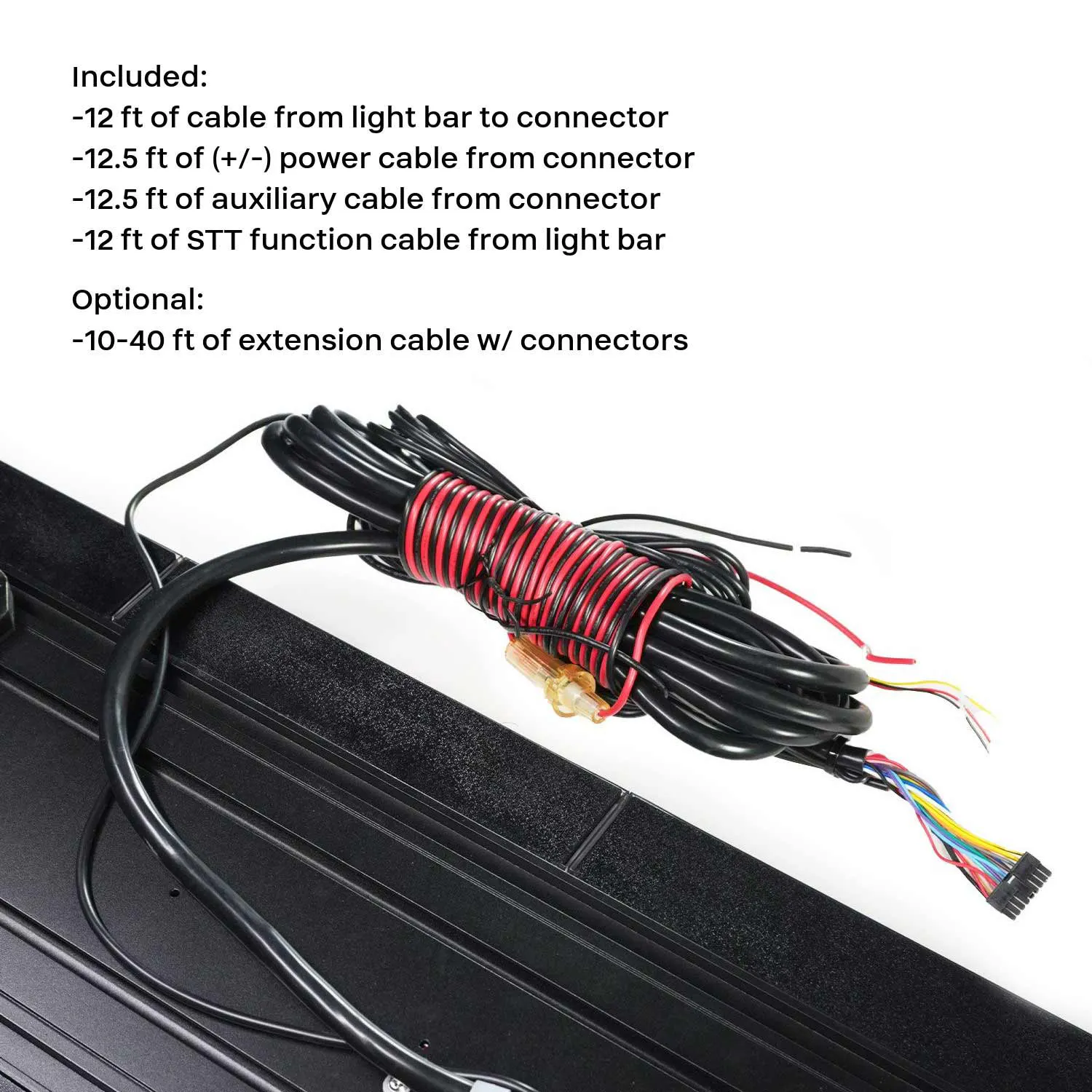

  • 12' of Cable from Light Bar to Connector
  • 12.5' of Power Cable from Connector
  • 12.5' of Auxiliary Cable from Connector
  • Adjustable Light Bar Feet Attached
  • Universal Gutter Brackets (unless different mounting option is selected in drop-down)
OPTIONAL ADD-ONS (SOLD SEPARATELY):

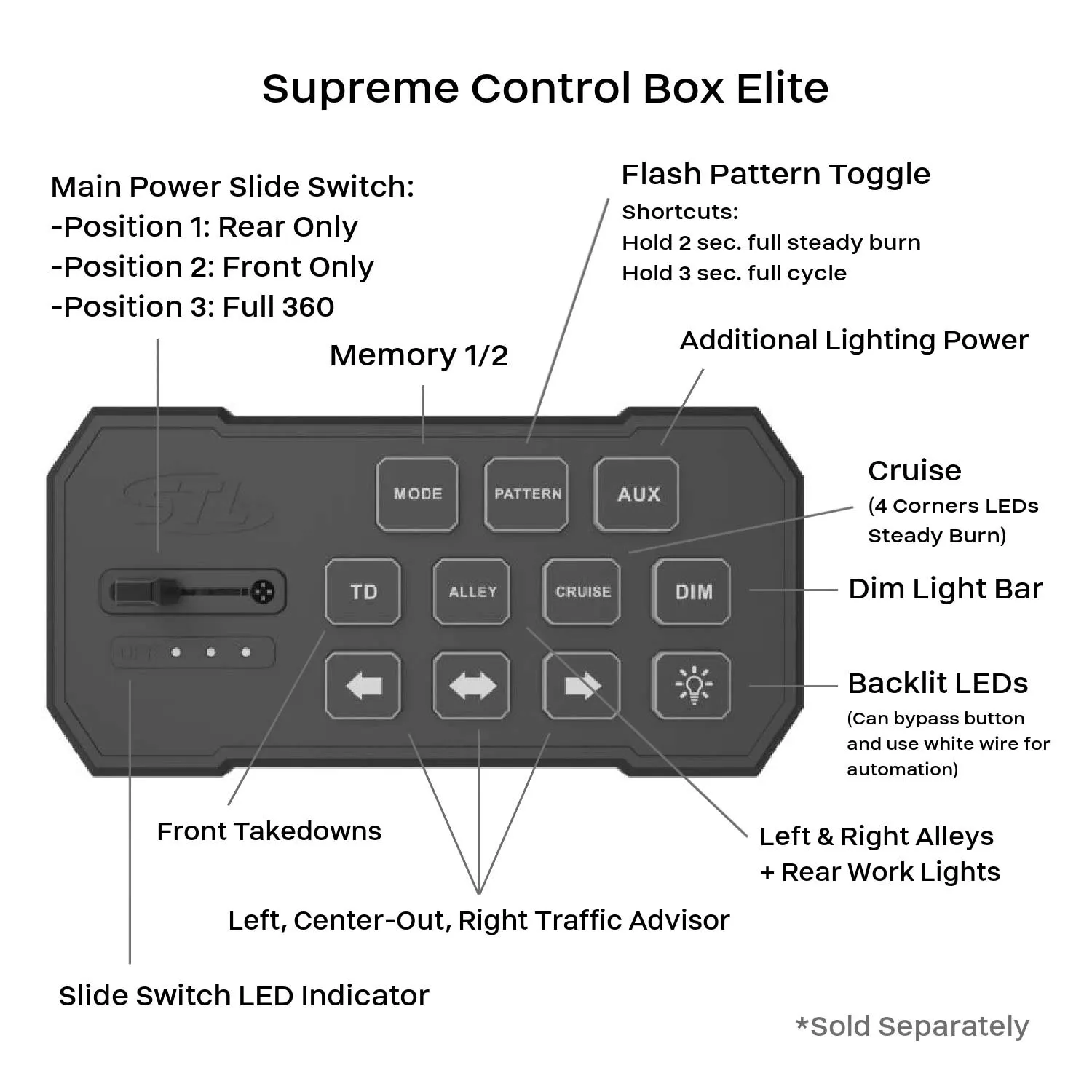

  • Supreme Control Box
  • 10-20' Extension Cable (22 Gauge)
  • 30-40' Extension Cable (16 Gauge)
  • Variety of Mounting Options

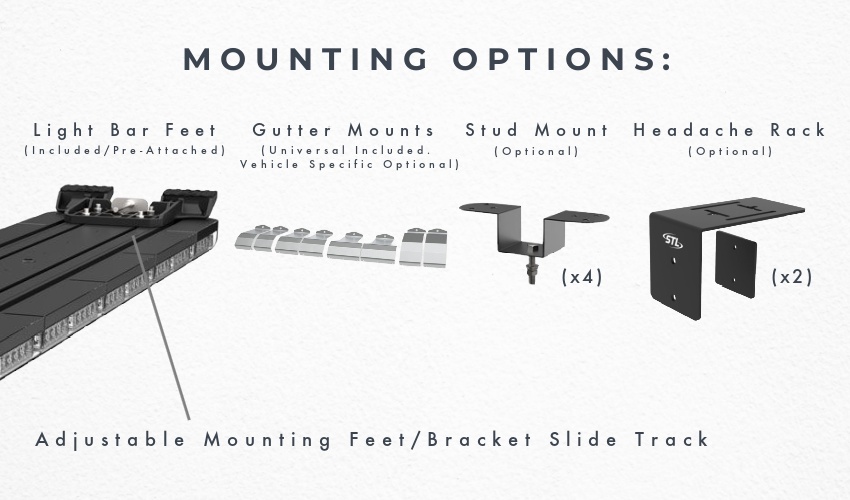

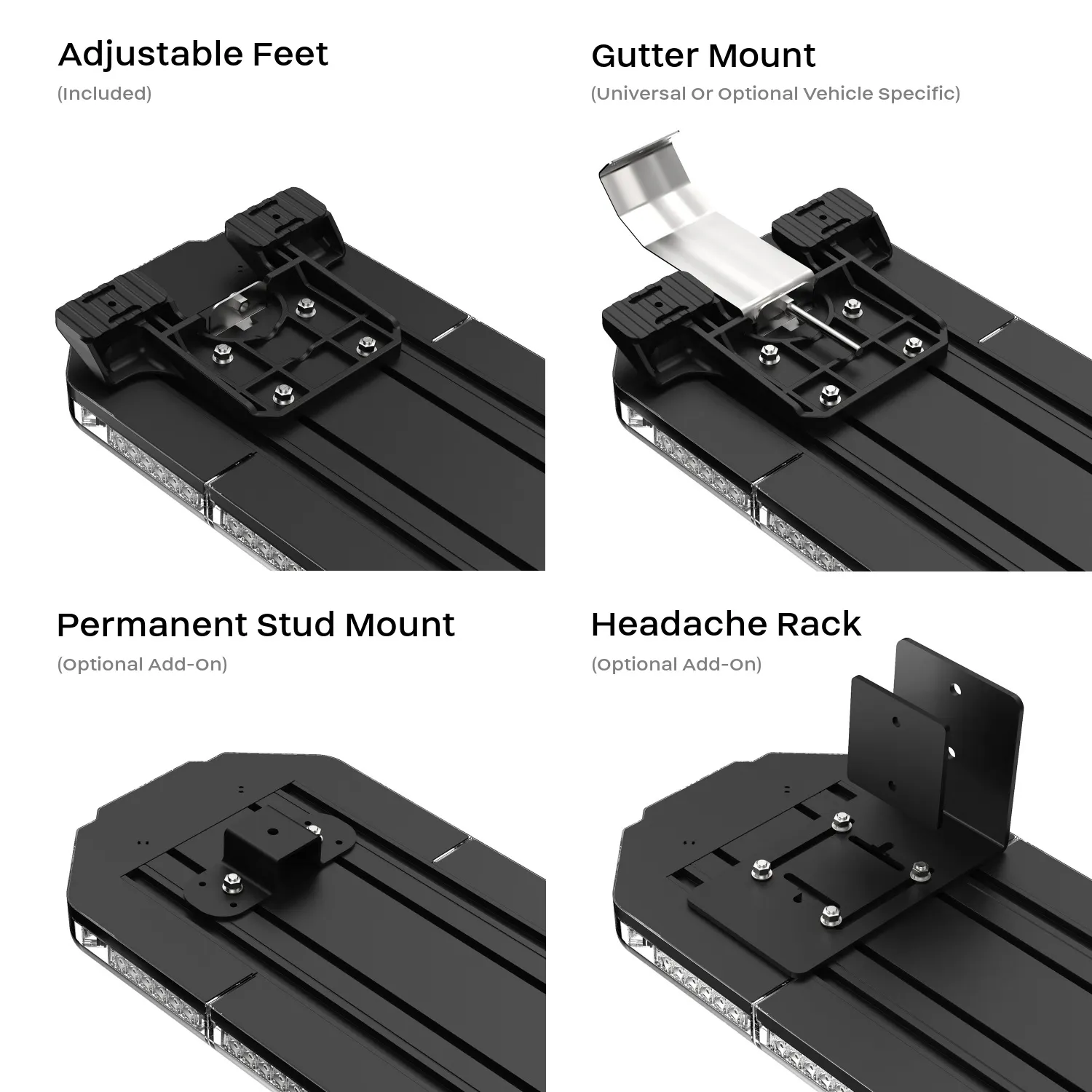

Mounting options

Literature

WATER PASS-THROUGH CHANNELS
