About The Feniex 4200 DL Controller
The Feniex 4200 Data Link Controller is one of the most powerful controllers in the warning industry. The 4200 DL Controller is ideal for any emergency vehicle lighting setup. Universally compatible and fully programmable, the 4200 DL can control your vehicle's lighting and siren system with ease. It is a compact, easy-to-use controller designed to simplify management of your light and siren system. It features 18 programmable, backlit buttons that can be customized to control the functions you use most. Button functions include on/off, momentary, and timer options.This Feniex 4200 Controller pairs perfectly with other Feniex products, including the Feniex Storm Pro Siren or Fusion Series lightbars by using one of three datalink ports. The possibilities are endless with the Feniex 4200 DL Controller.
Features/Specs:
- 18 programmable buttons: on/off, momentary, or timer
- Free 4200 programmable software
- Auxiliary buttons programmable as on/off or momentary
- Integrated 2 output wig-wag capability (for lights)
- Integrated microphone
- 7 dedicated buttons for siren tones and programmed as momentary or on/off
- Air Horn, Park-Kill, Radio Rebroadcast capabilities
- Fuse 125% of circuit draw

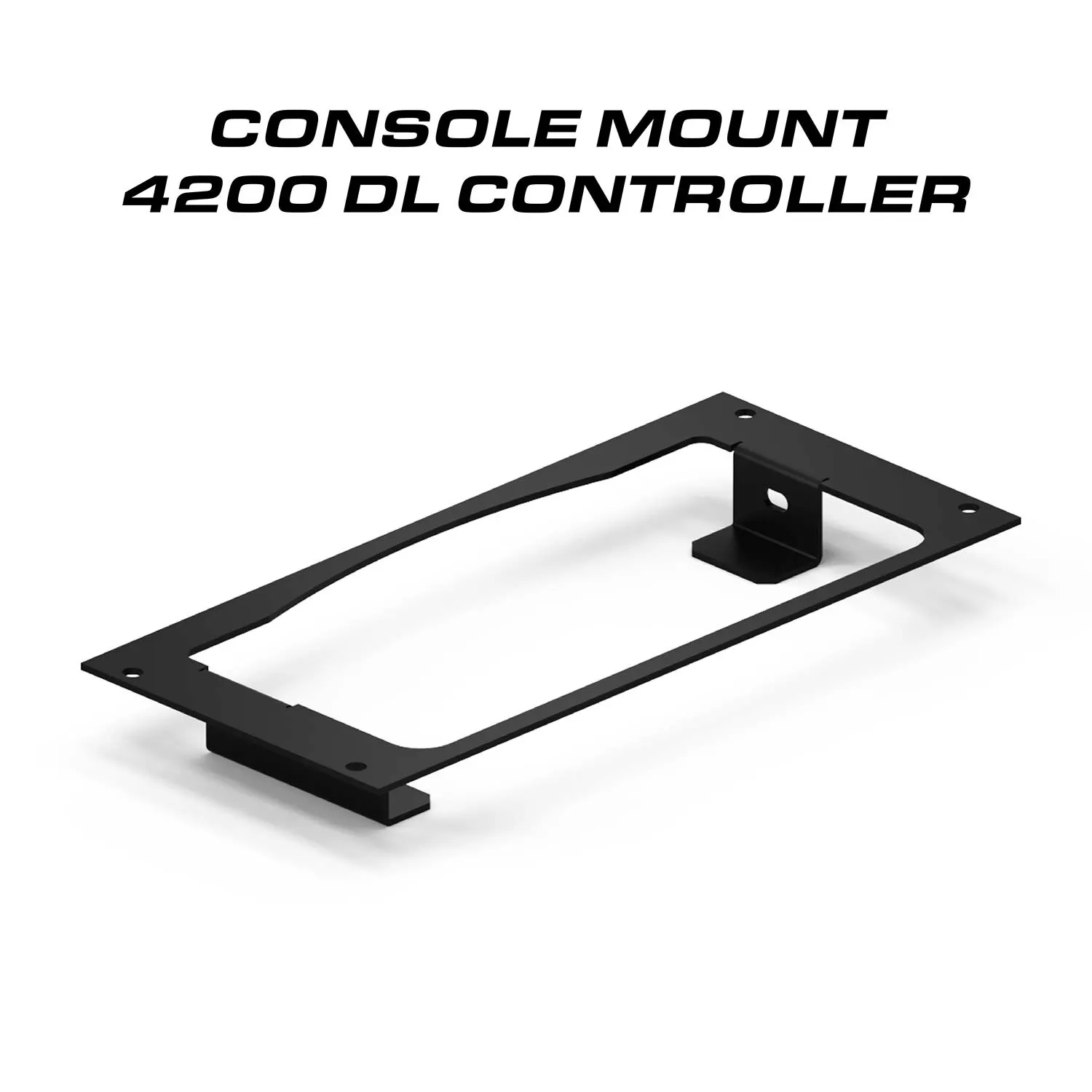

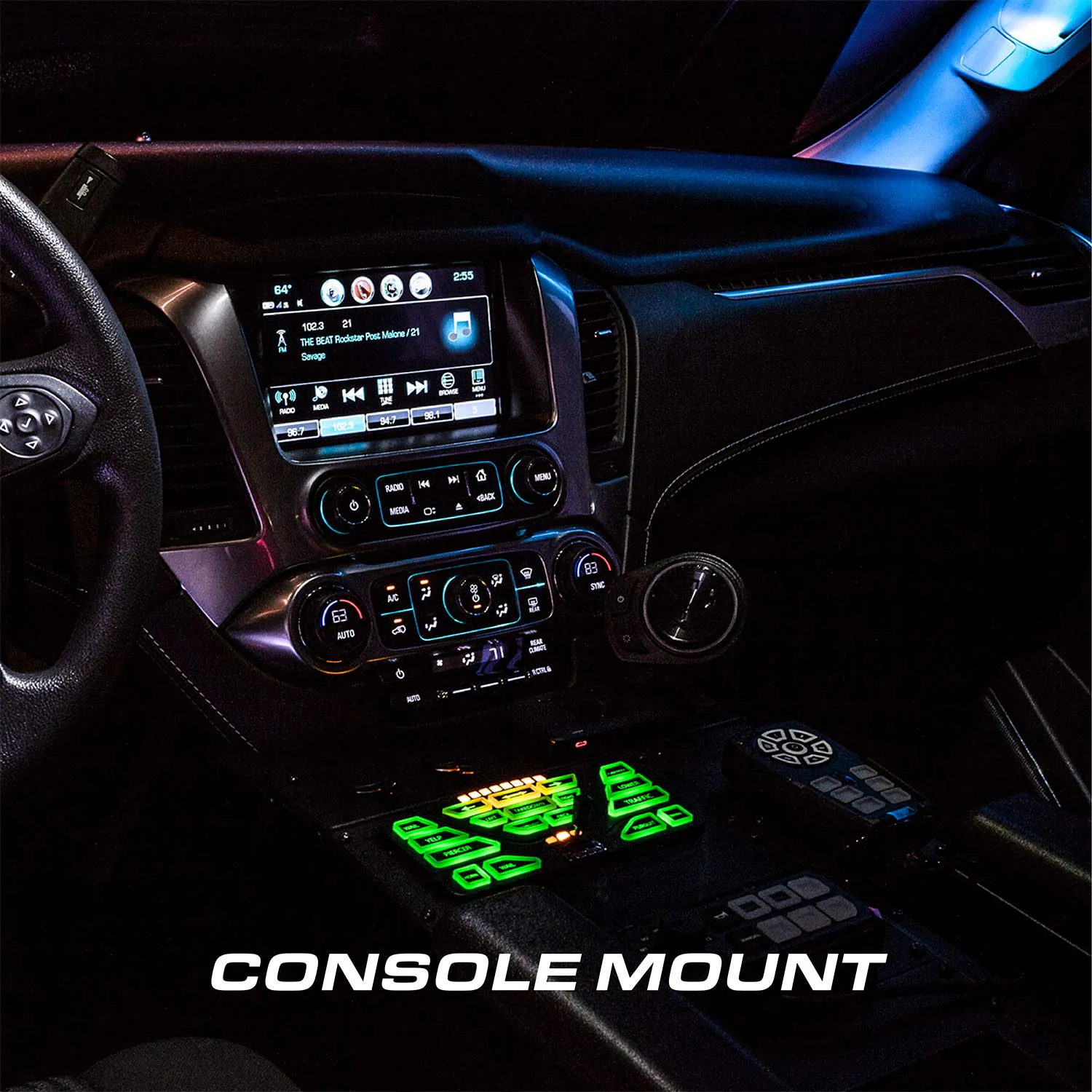

- Console face plate available with Havis, Jotto and Troy
- Backlit LED buttons
- Compatible with most emergency lights
- Capabilities:

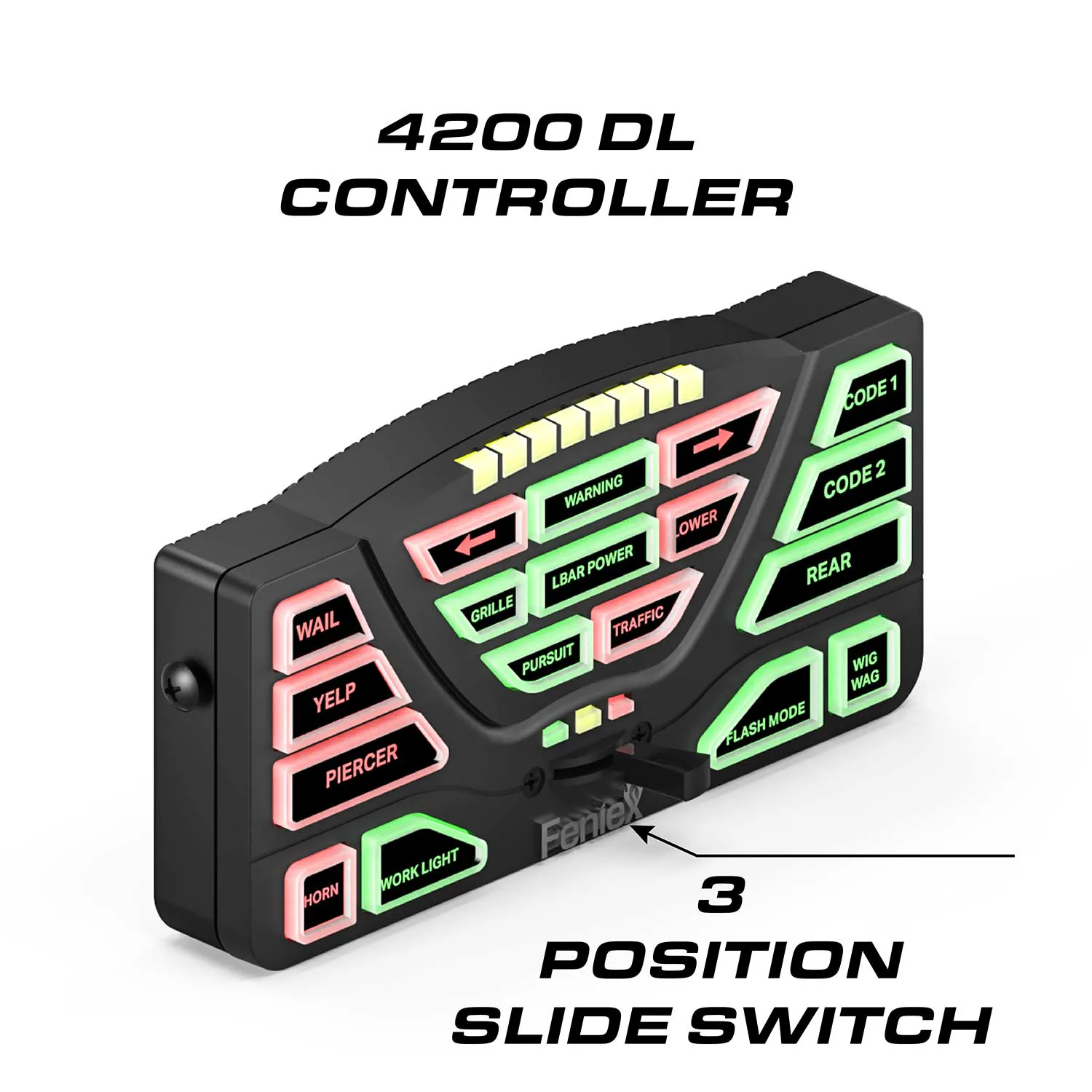

- 3-position slide switch
- 2-channel integrated wig-wag

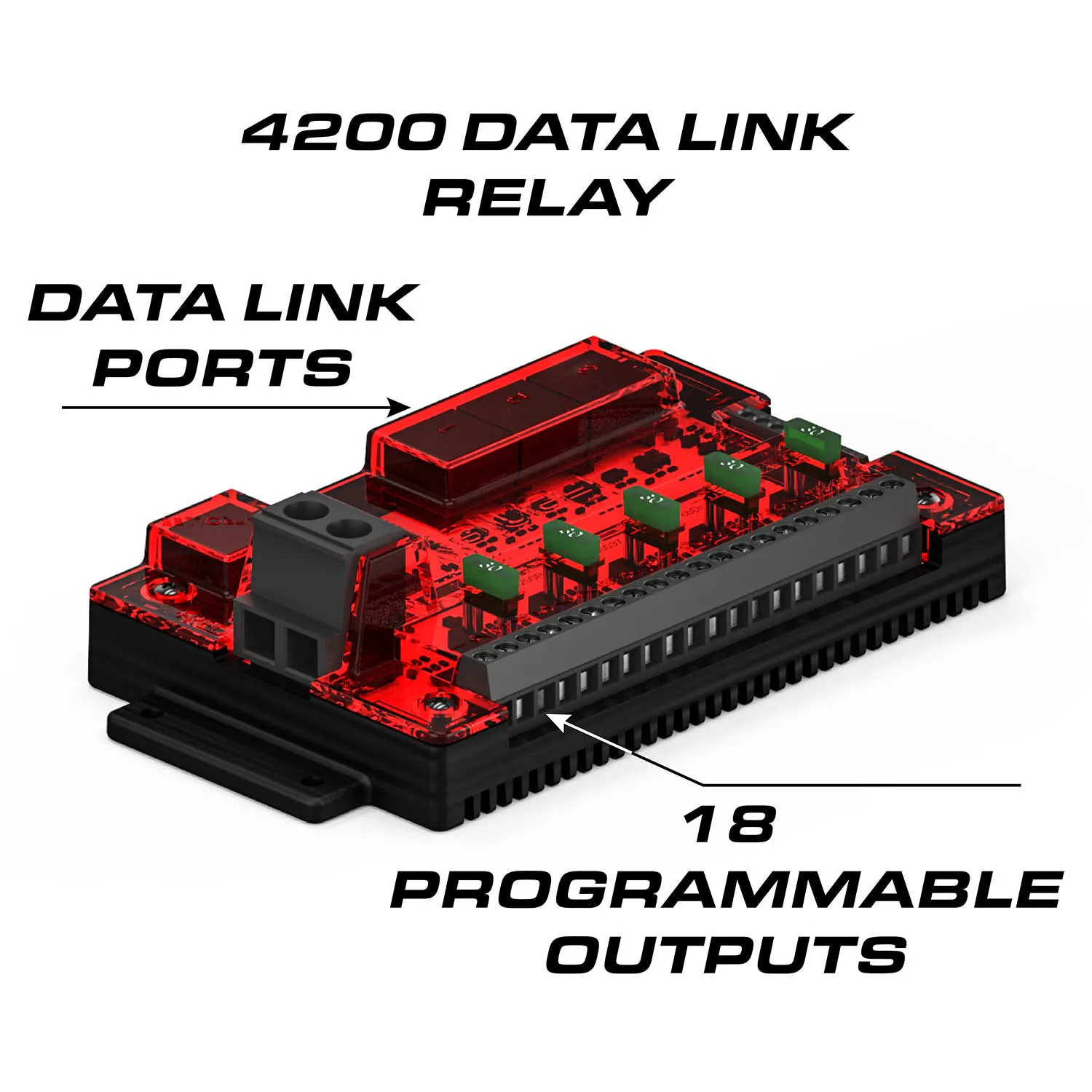

- 18 programmable 10 Amp outputs
- Programmable ignition activation
- Programmable night mode activation
- Programmable day mode activation
- 2 programmable 12V inputs
- SAE J1113-11
- Input Voltage: 10-18 VDC
- Max Current Draw: 60 Amps
- Amps Per Output: 10 Amps on 18 Outputs

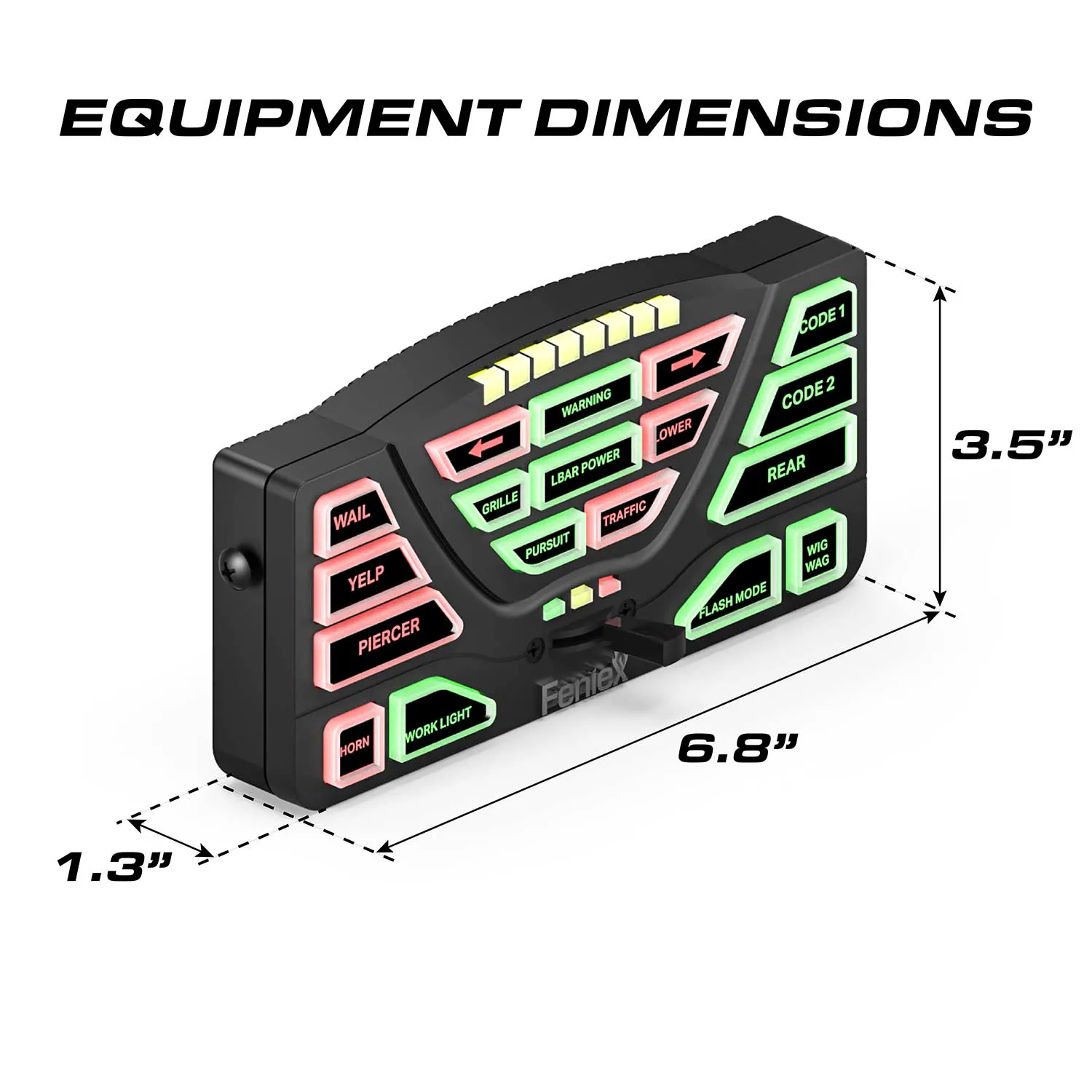

- Controller Dimensions: 6.8" L x 1.3" W x 3.5" H

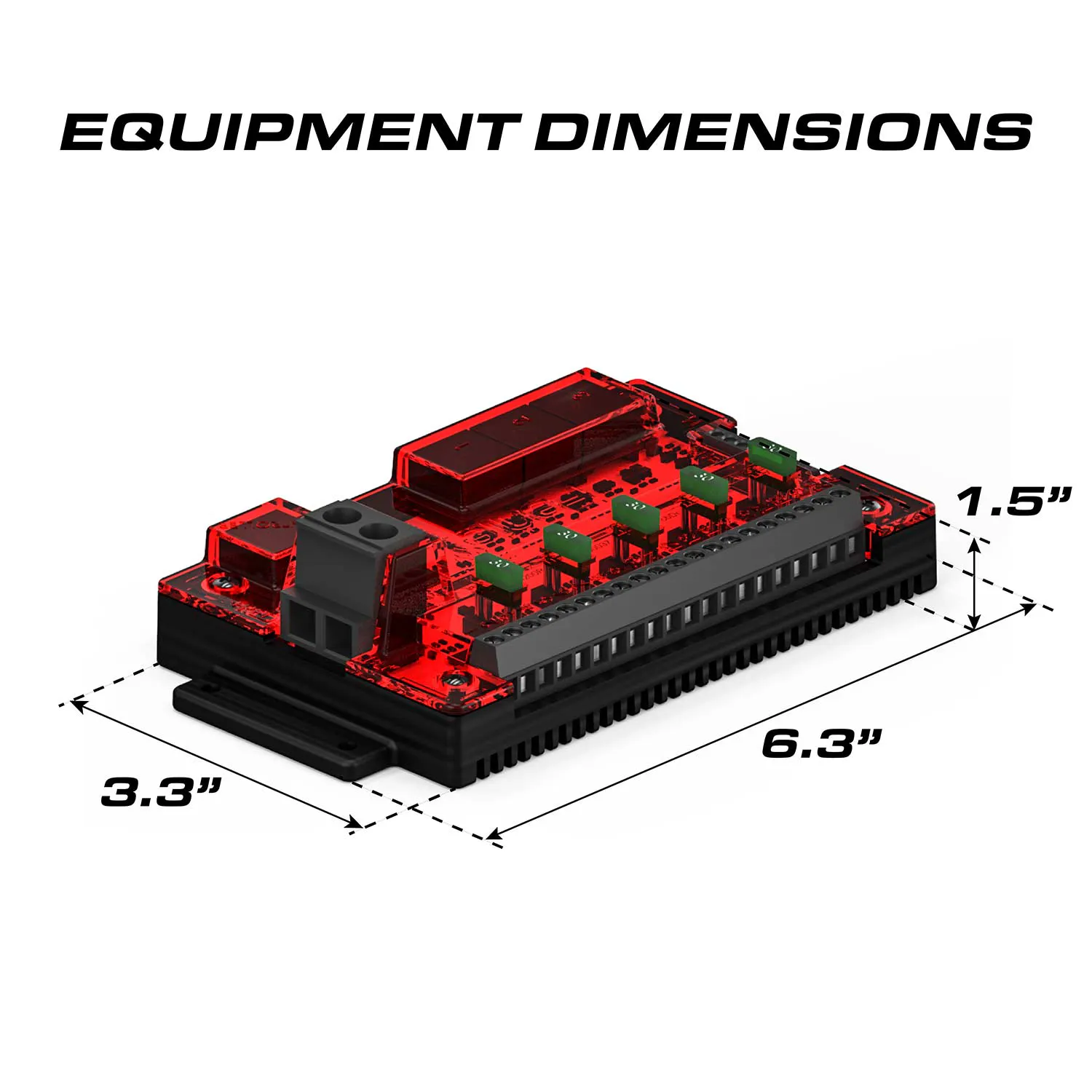

- Relay Dimensions: 6.3" L x 3.3" W x 1.5" H
- 2 Year Manufacturer Warranty*
- Made In The USA: Austin, TX
WHAT'S INCLUDED:

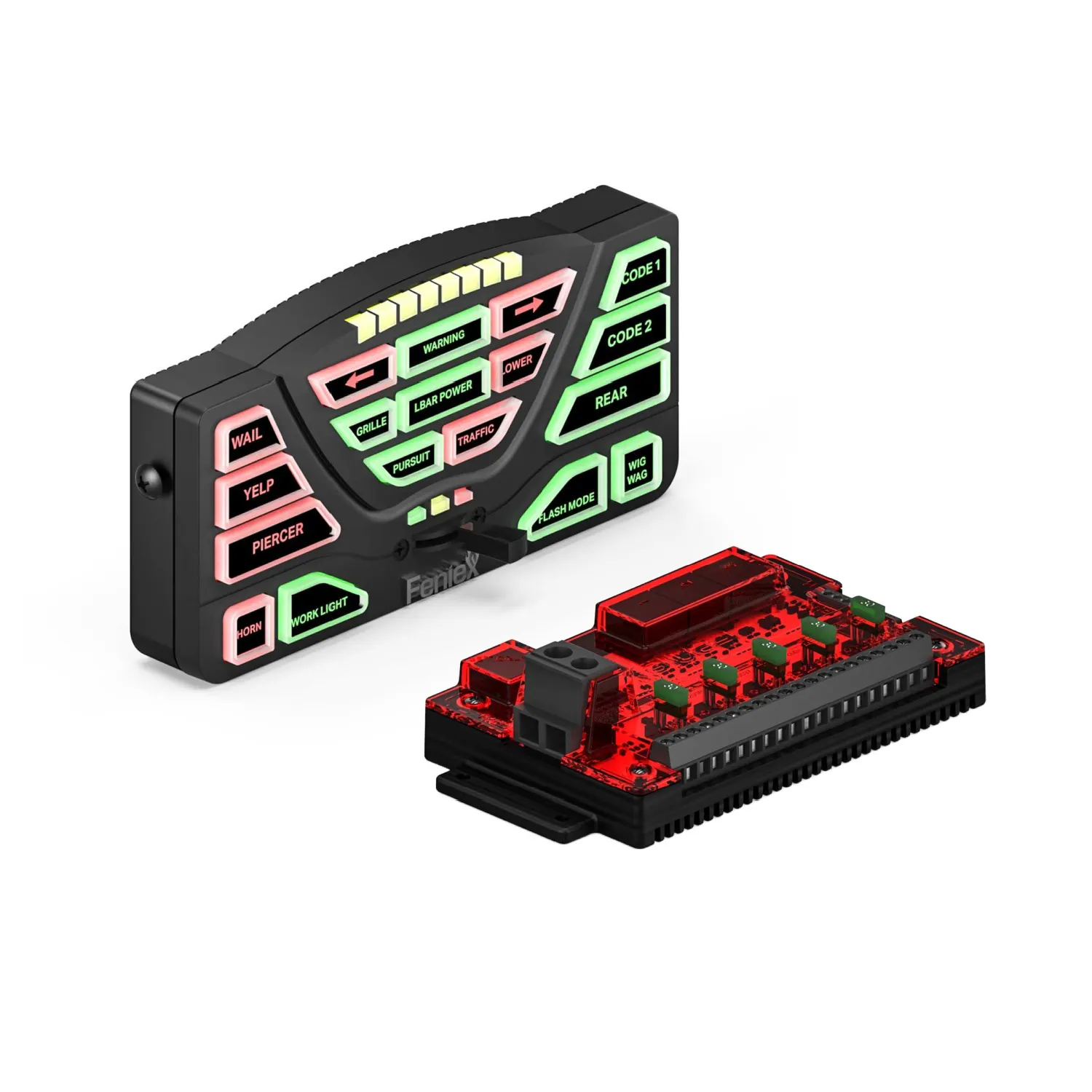

- Feniex 4200 DL Controller & Relay

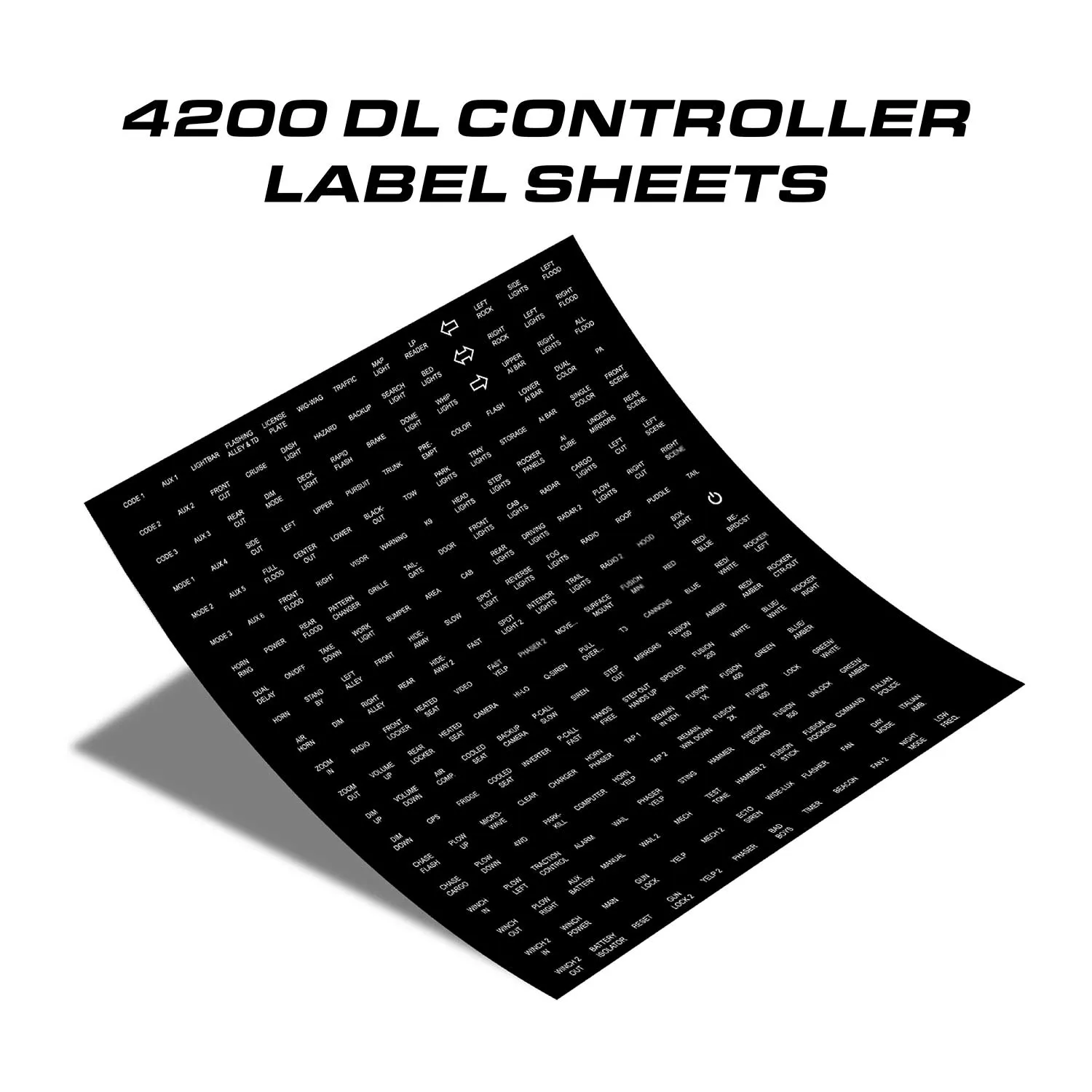

- 4x Button Legend Sheets
- 2x RJ45 Cables
- 1x USB Cable

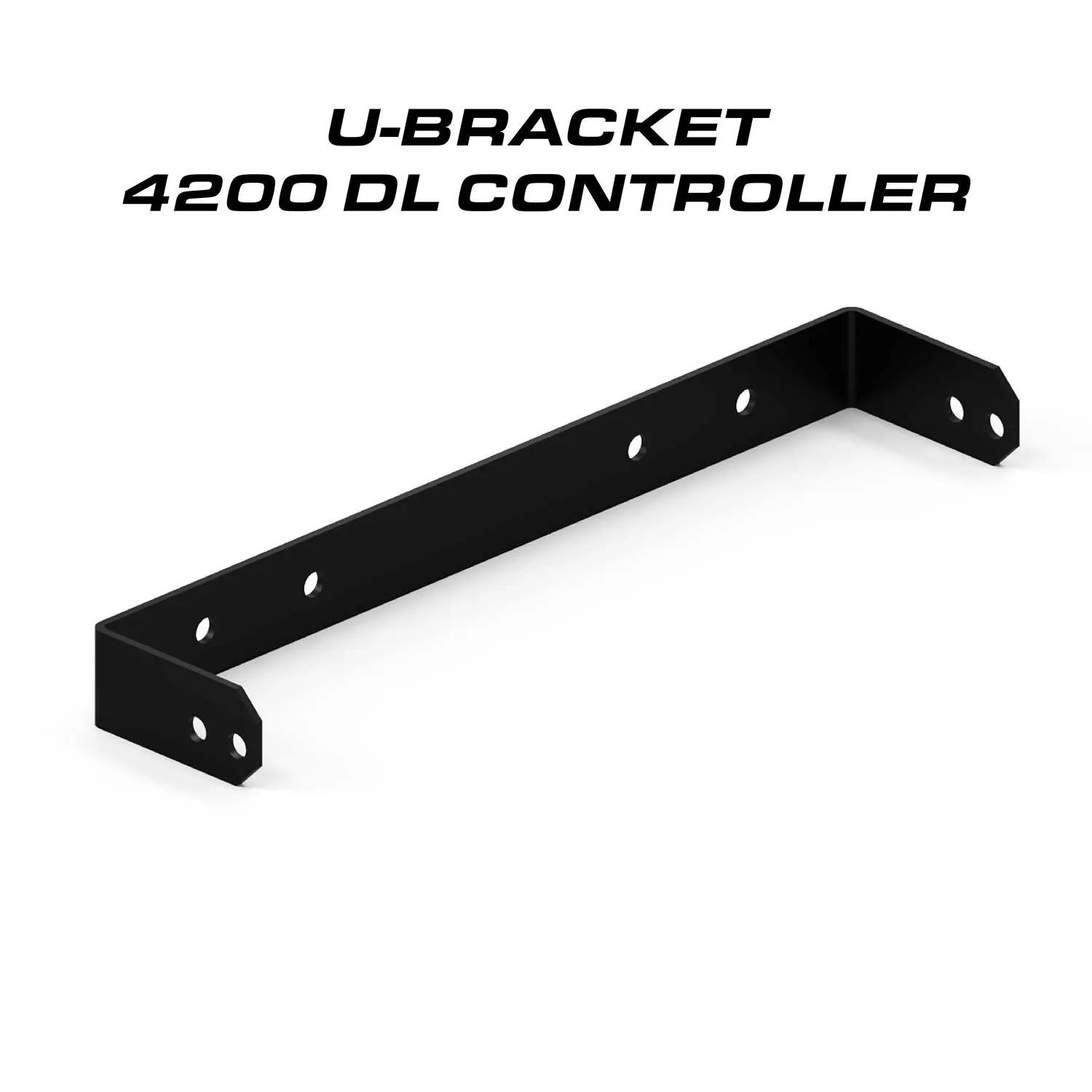

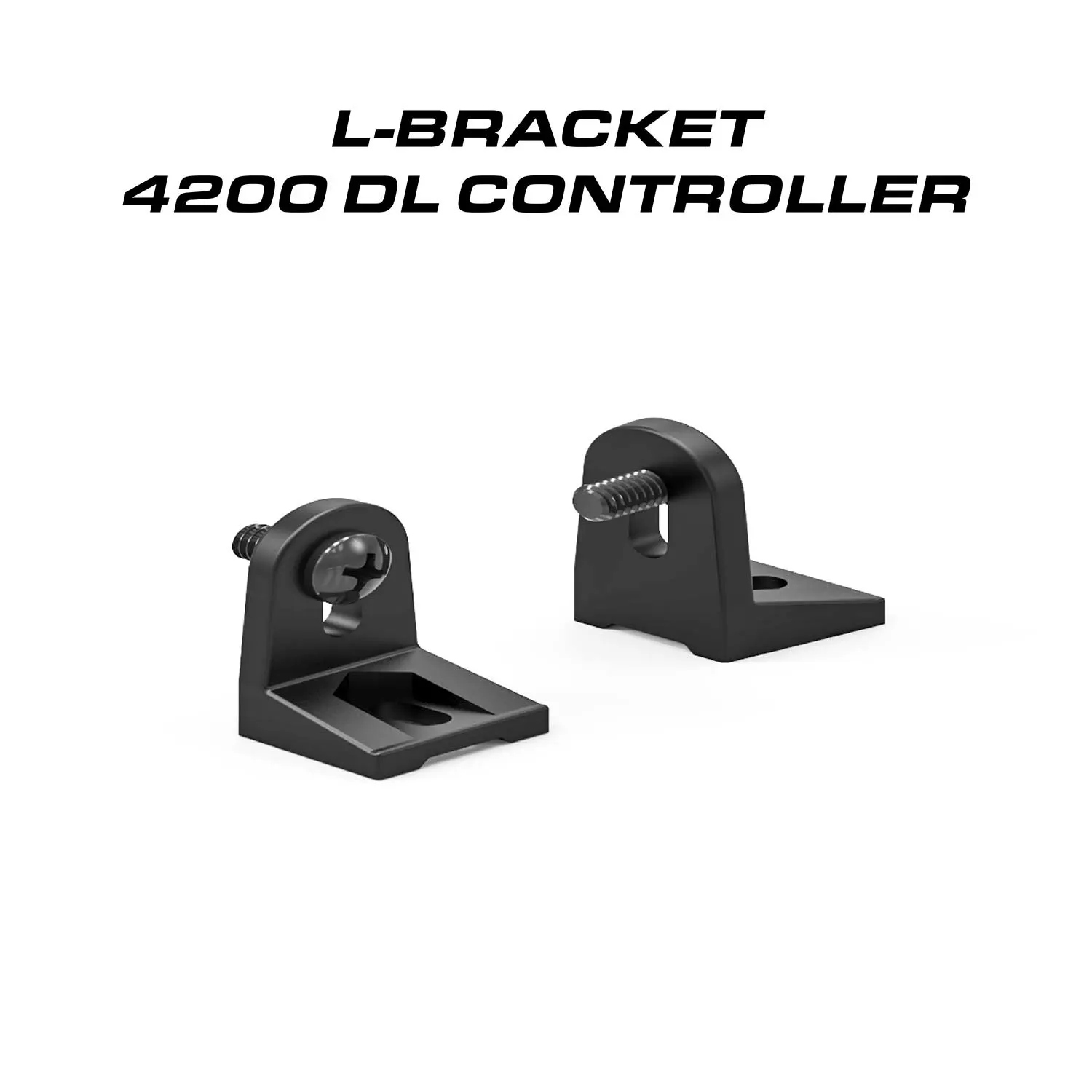

- U-Bracket
- 10' Extension Cable
- Swivel Bracket
