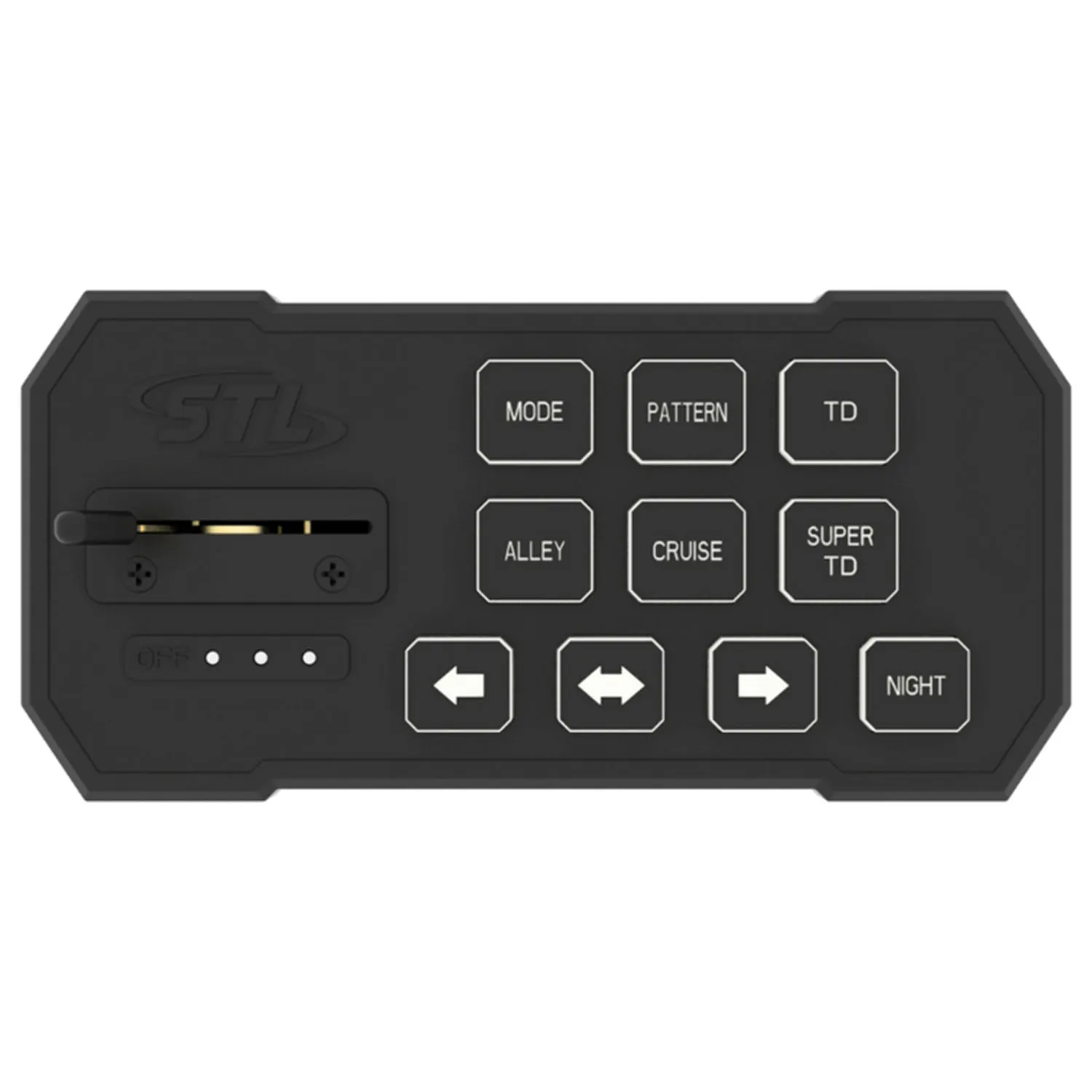

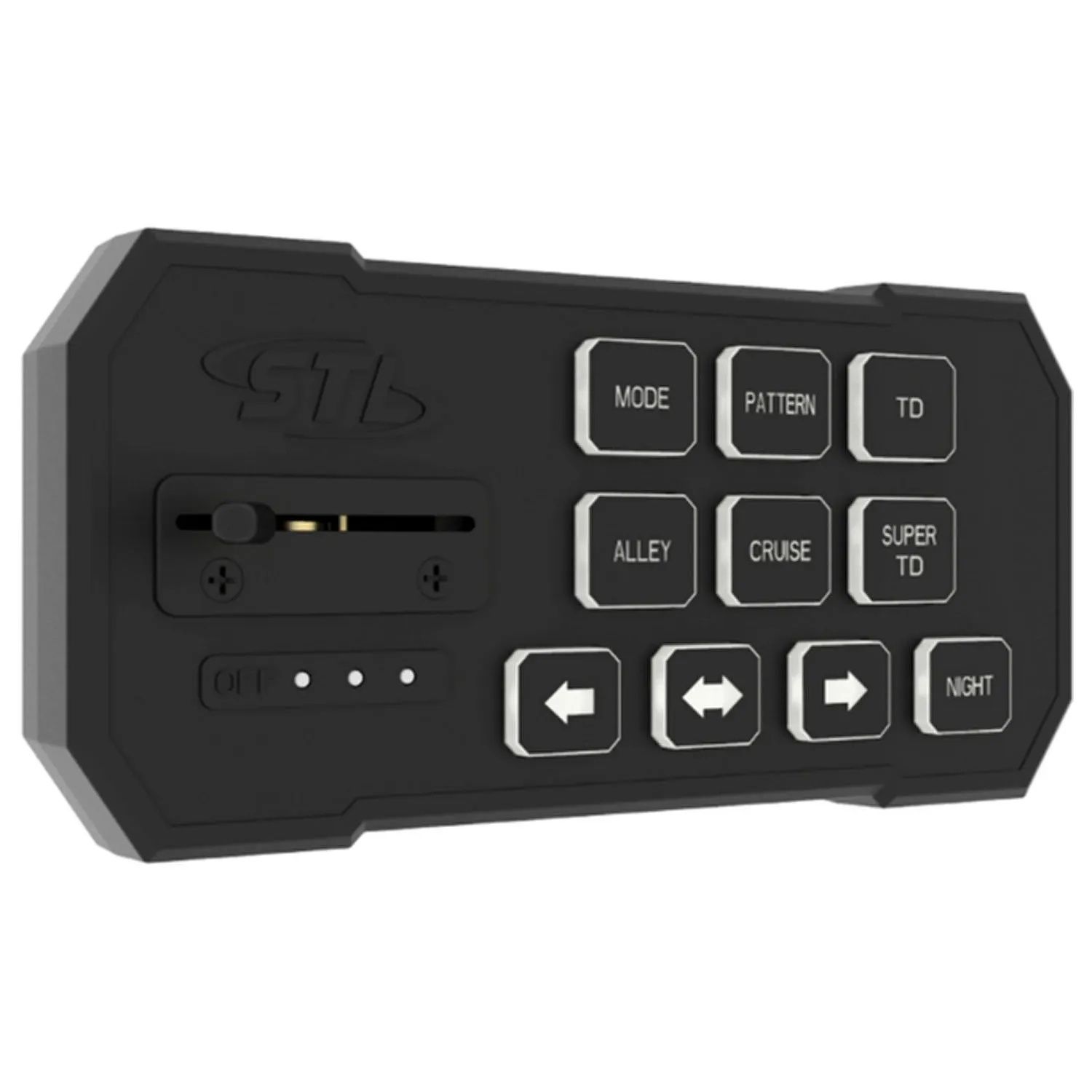

MerchSuper Take Down Supreme Control® Switch Box (Dual Memory) SKU: C-SPRCBSTD
- U.S. Patent No. D750573
-
![image]()
2 Year Warranty*
-
![image]()
CUSTOMER SUPPORT
-
![image]()
Free Shipping on orders $59+*
Specifications
Specifications
About The Super Take Down Supreme Control Switch Box (Dual Memory)
Optional Add-On Descriptions:
Cable Harness:
---White Connector Adapter = This connector is for if your light bar was a previous-gen model equipped with a white connector.
---Black Connector w/ Short Cable Harness = This connector is for if your light bar was a newer-gen model equipped with a white connector.
(Contact STL prior to purchase if unsure)
L Rear Facing Adapter:
---Adapter = This allows you to plug in your connector from a rear-facing position using the L shaped connector adapter that plugs into your control box and faces backward.
Cable Harness:
---White Connector Adapter = This connector is for if your light bar was a previous-gen model equipped with a white connector.
---Black Connector w/ Short Cable Harness = This connector is for if your light bar was a newer-gen model equipped with a white connector.
(Contact STL prior to purchase if unsure)
L Rear Facing Adapter:
---Adapter = This allows you to plug in your connector from a rear-facing position using the L shaped connector adapter that plugs into your control box and faces backward.
Features:
- NEW Dual Flash Pattern Memory Modes
- NEW Night Mode (see details below)
- Powered by 12V
- Multiple flash pattern controller
- Non-volatile memory recalls last flash pattern
- Compatible with Super Take Down STL K-Force Series full lightbars
- Allows for directional pattern control
- Directional patterns: right, left, center out
- TD/Alley/Cruise mode functionality
- Super Take Down mode
*See Terms and Conditions
Night Mode w/ Optional Control Box:
---Night Button Use = Toggle Night Mode on/off using Night Button while not hard-wiring the white cable.
---White Cable Use = Hardwire the free-standing white cable to your headlight +12VDC line to automate this feature. NOTE: This deactivates the usability of Night Button. Once hardwired, the Night button ceases to function. Make sure Night button is NOT activated before wiring white cable otherwise Night button will remain activated/illuminated.
