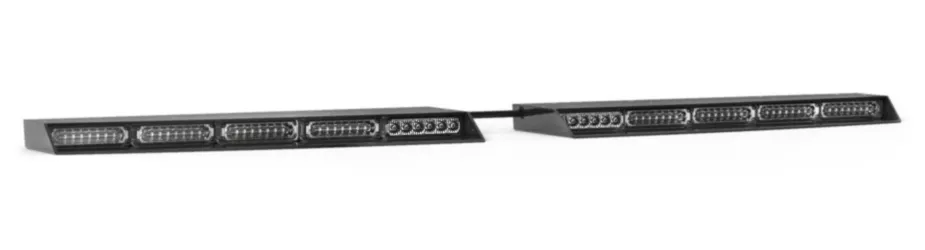

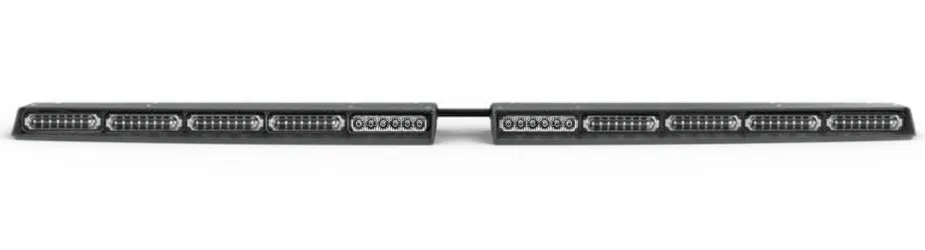

MultiColor Raptor Linear Interior Split LED Visor Light Bar (Dual Memory) SKU: B-RLMC10

  • SAE Certification No. 180349
  • RoHS Certification No. ENC171106GZ16
  • U.S. Patent No. D797359
(72) 3w MaxGen LEDs
  • $469.99
  • $299.99
  • You Save: $170.00
In Stock
  • image

    5 Year Warranty*

  • image

    60 Day Return Policy*

  • image

    Eclipse Optic Technology

  • image

    Free Shipping*

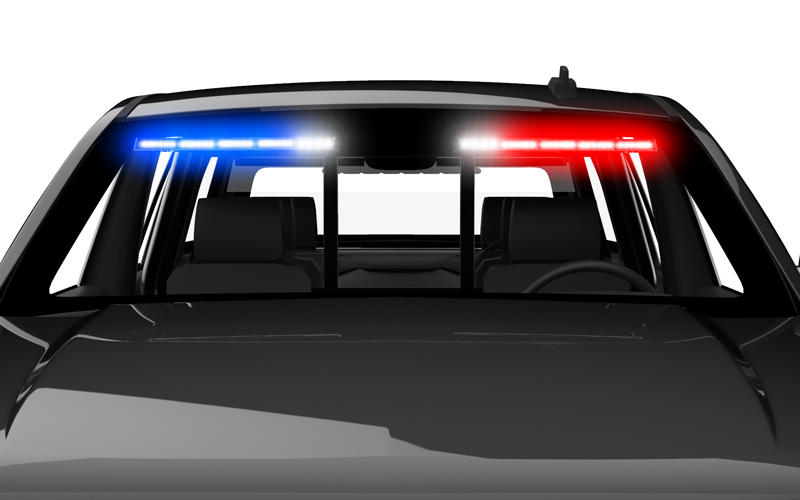

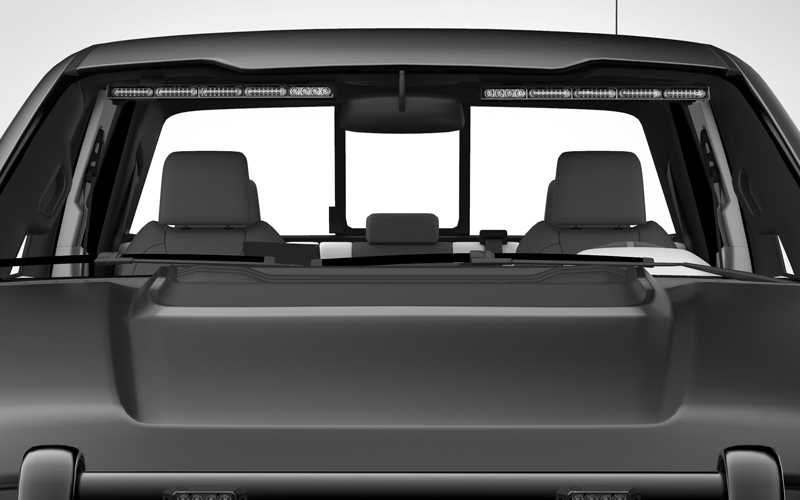

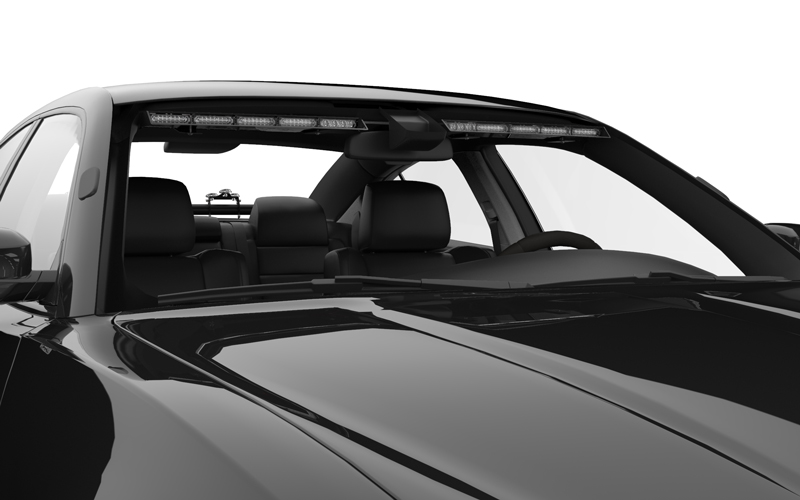

Application Photos

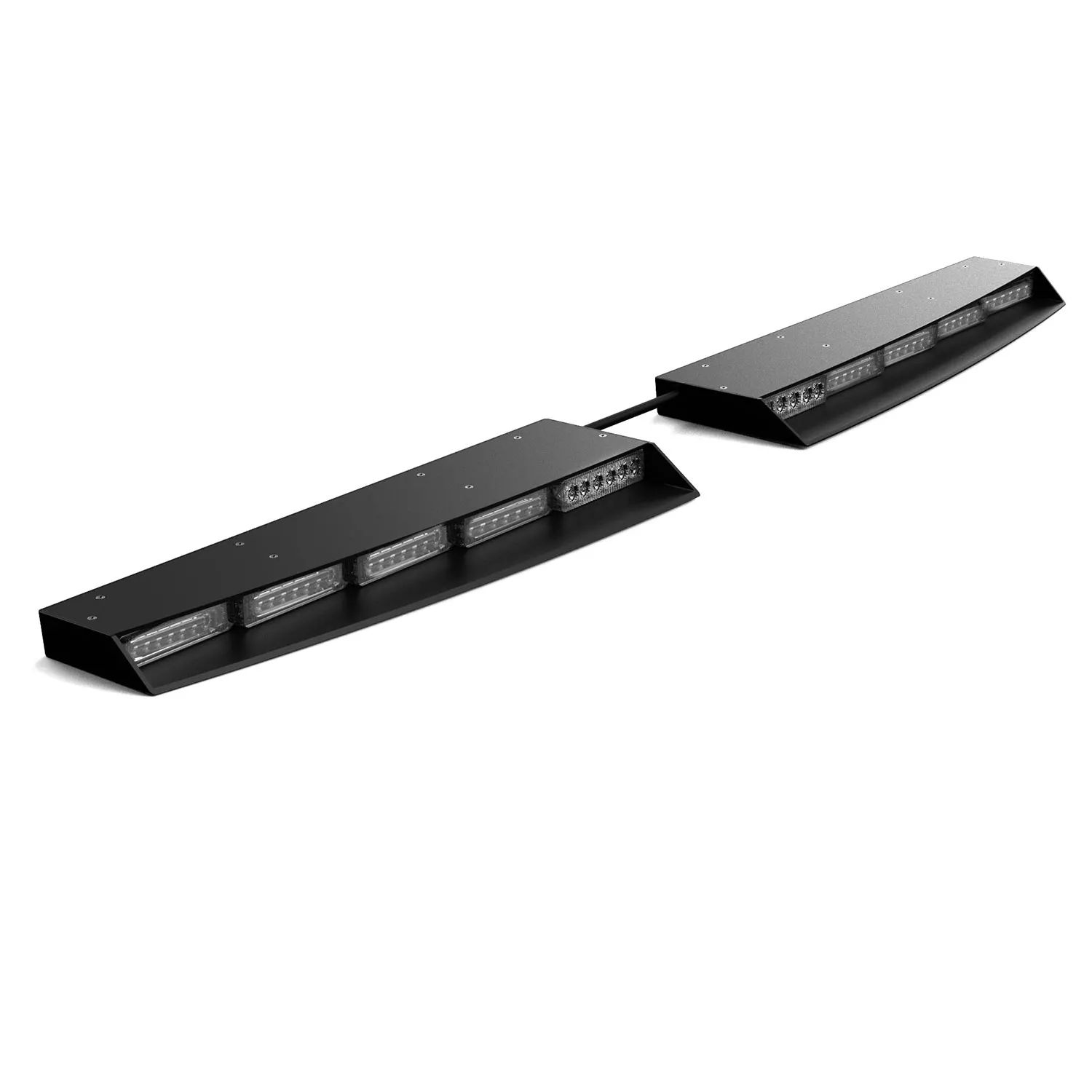

About The MultiColor Raptor® Linear Interior Split LED Visor Light Bar (Dual Memory)

The MultiColor Raptor® Linear Interior Split LED Visor Light Bar is one of the most versatile LED vehicle emergency lights on the market. With each of its two sides loaded with a total of 72 high power MaxGen® Linear 3-watt LEDs, 8 of which are powerful takedown LEDs with TIR optics, this high-performance interior light bar is the perfect accessory for any vehicle or fleet.

Choose between a total of 36 flash patterns that feature both MultiColor flash mode and single color A or B flash mode. The MultiColor functionality of this bar allows both left and right sides to flash different colors in the same module based on your order giving you true MultiColor flashing functionality while also giving you a variety of flash patterns in single color mode A or B so you can even switch between which color you need to use at that time, giving you the best of both worlds. With the new dual memory modes, you can program up to 2 different patterns for a quick switch back and forth between memory 1 and memory 2 using the mode button(s).

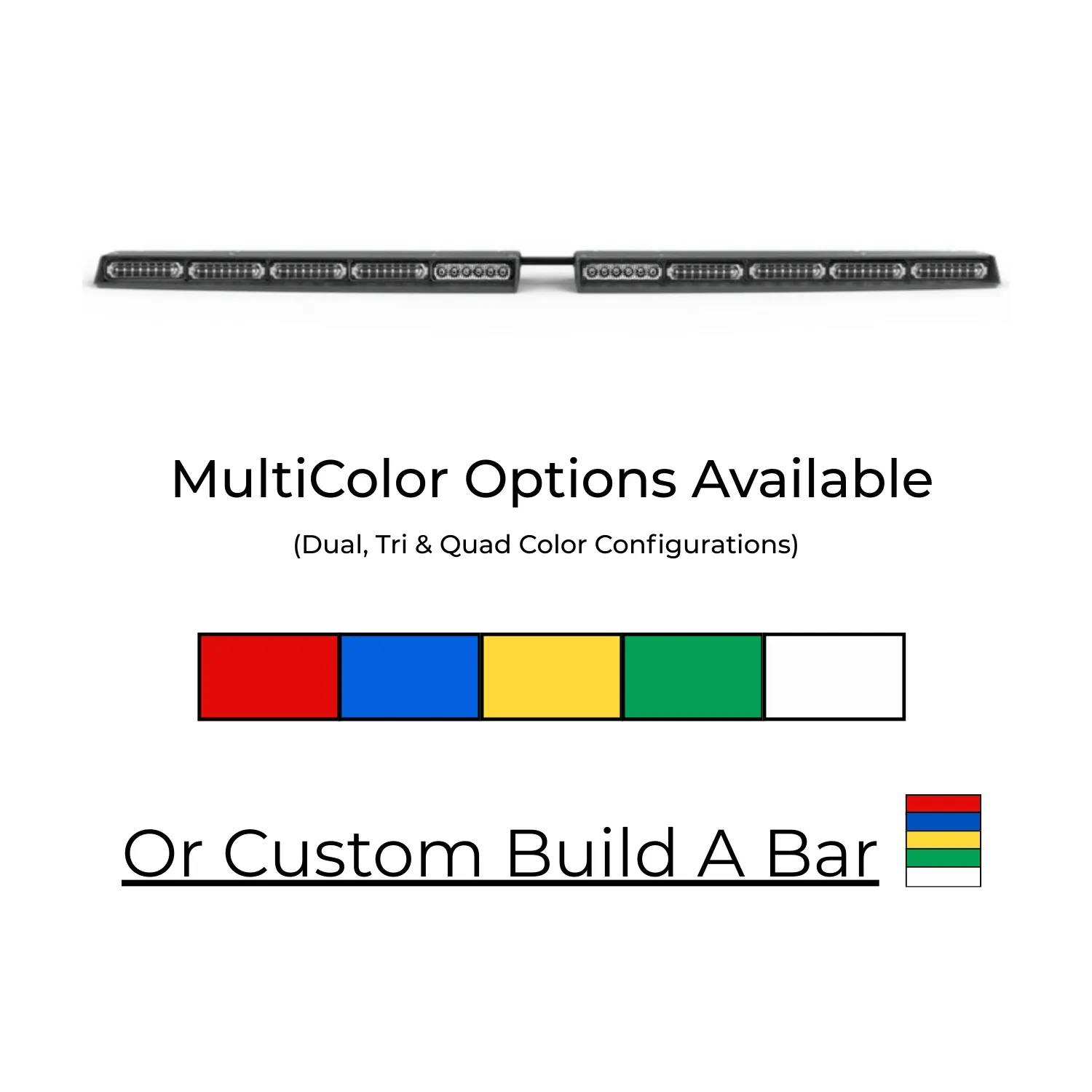

Our already bright and powerful 3-watt MaxGen® LEDs are enhanced even further by our Eclipse® Linear Optics which magnify the intensity of the flash, giving you a wider viewing area and superior off-axis lighting. All MultiColor Raptor® Linear LED Split Visor Light Bars can be equipped with a combination of Blue, Clear, Red, Amber, or Green LEDs and can now be purchased in alternating or custom configurations as well.

With its built-in windshield reflector, universal or vehicle specific mounting brackets, and the optional STL Grand Control® Box, the Raptor® Linear Windshield Light Bar is easy to install and operate and is backed by SpeedTech Lights' trusted 5 year warranty. Take a look at our flash pattern and instructional videos to see the MultiColor Raptor® Linear Interior LED Visor Light Bar in action.

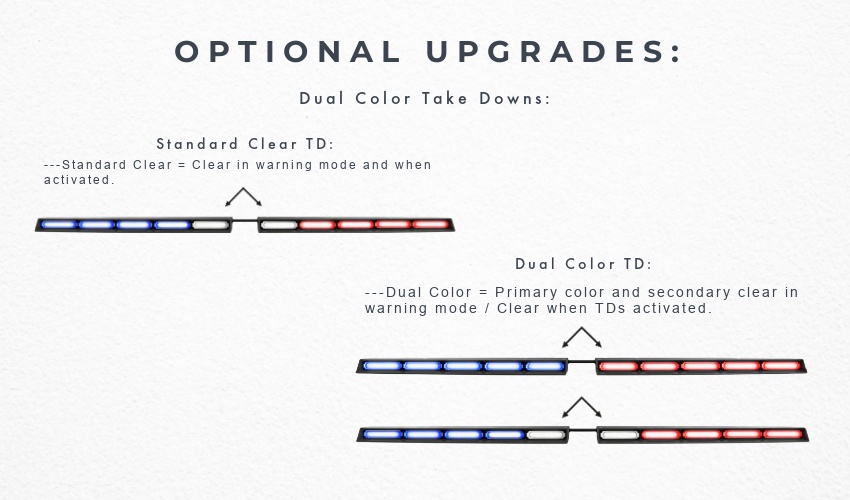

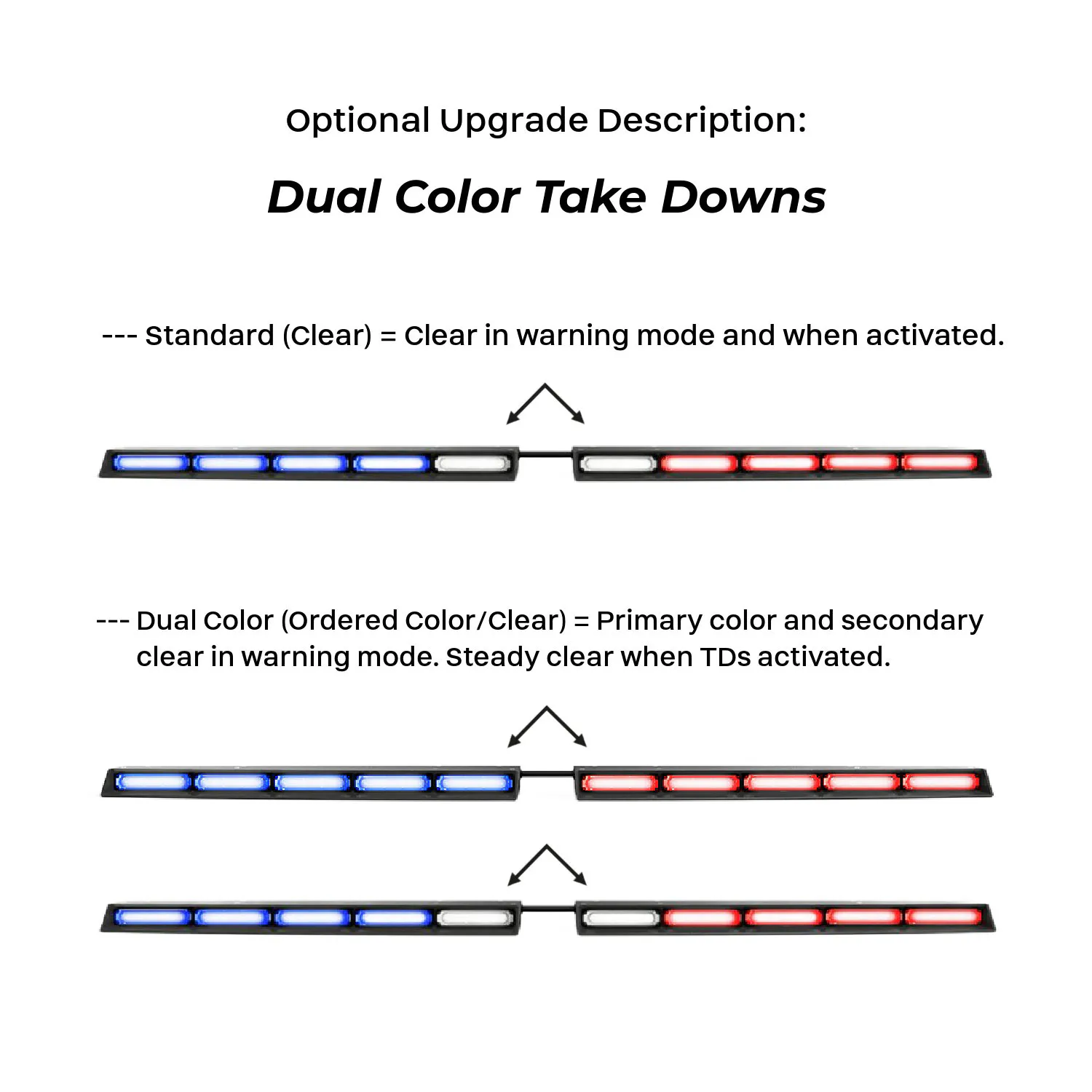

Optional Upgrade Descriptions:

Take Down LEDs:
---Standard Clear = Clear in warning mode and when activated.
---Dual Color = Color/Clear in warning mode / Clear when TDs activated.

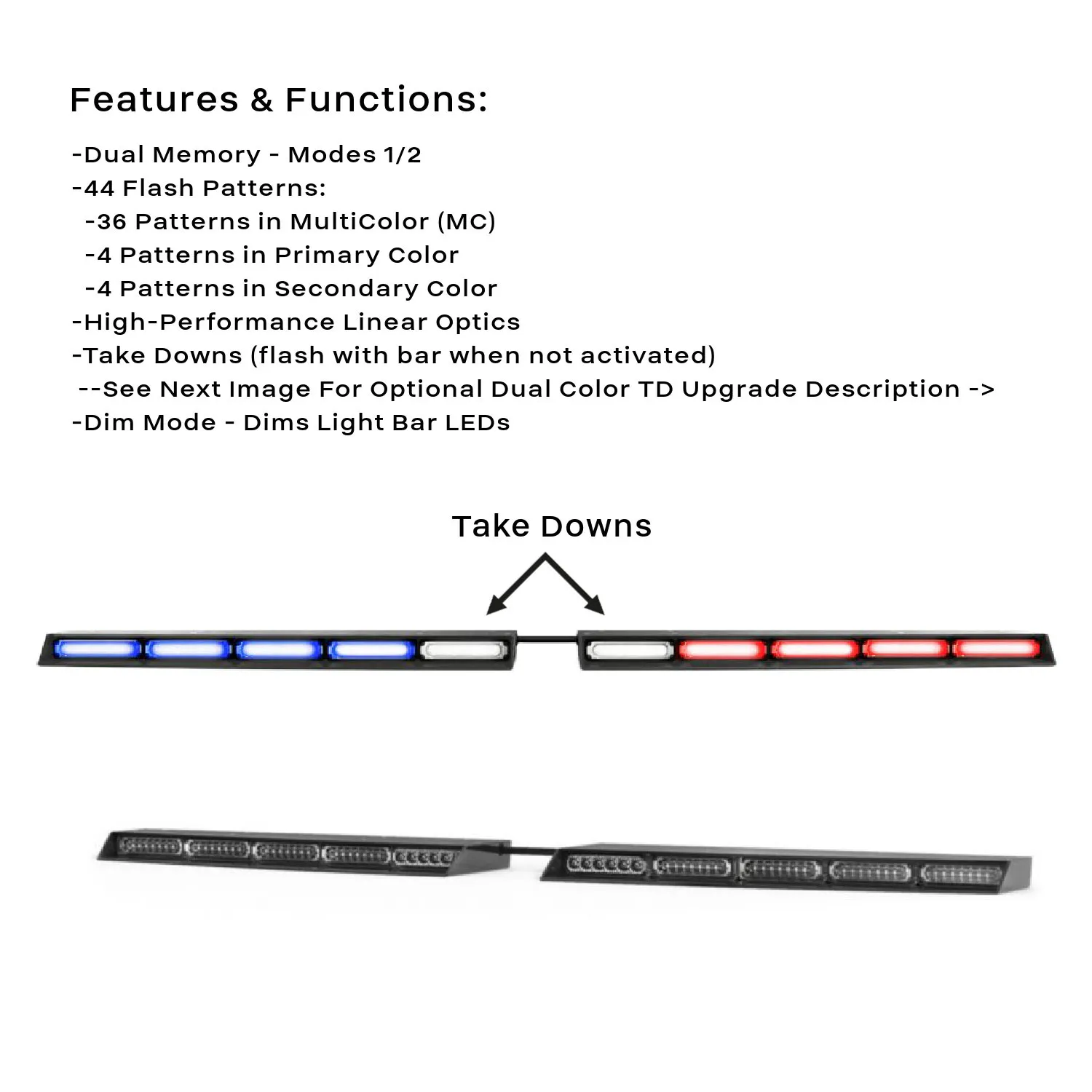

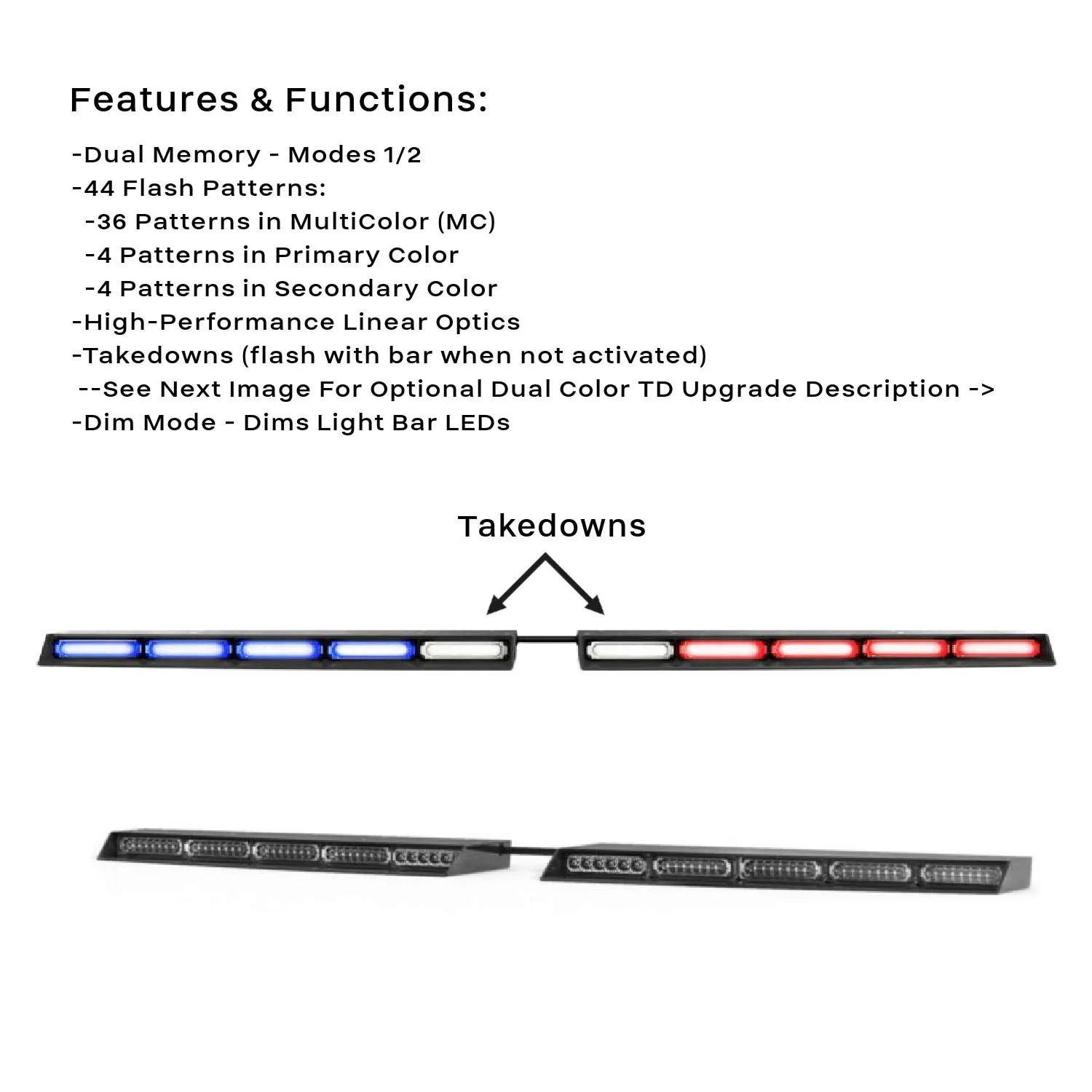

  • NEW Dual Flash Pattern Memory Modes
  • Powered by 12V

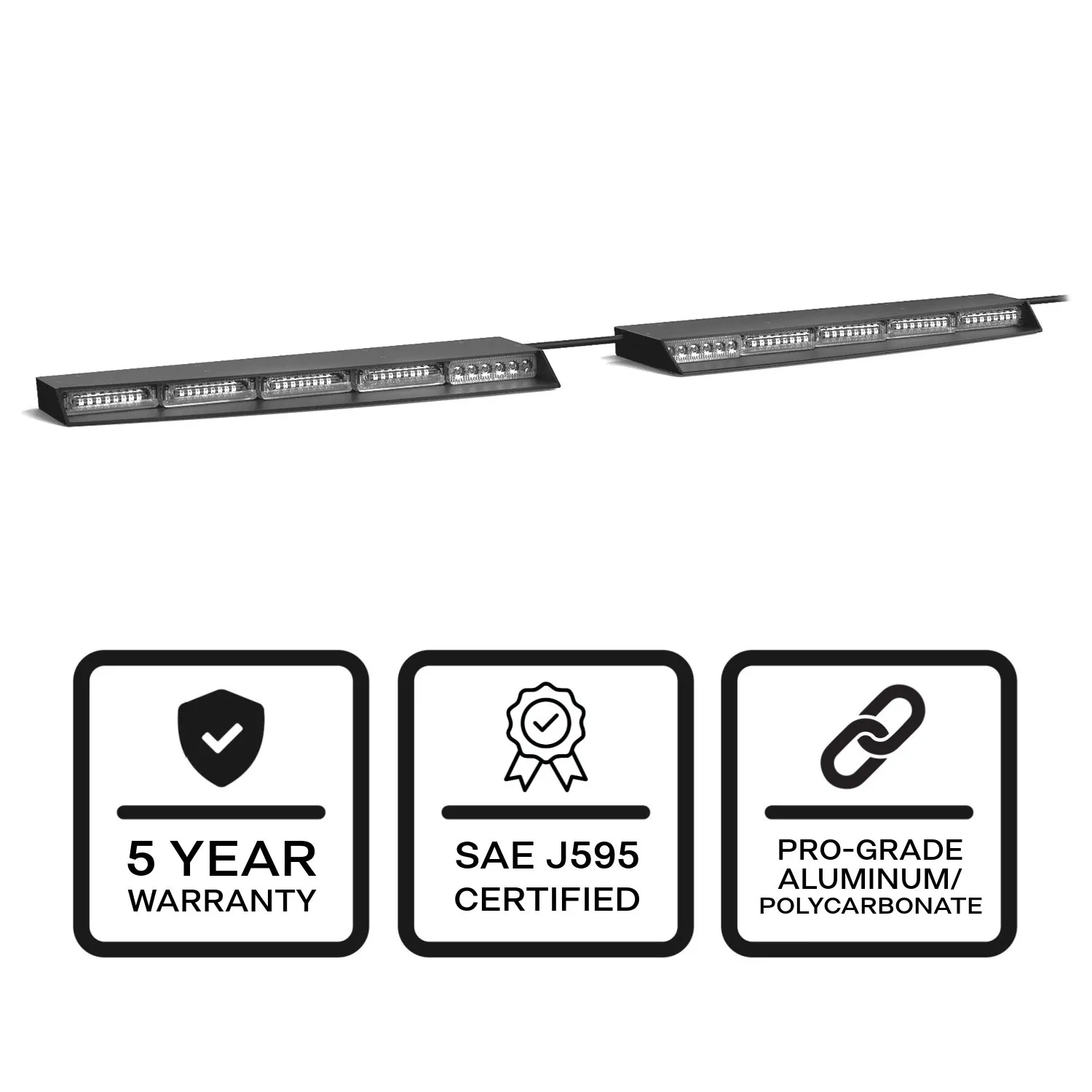

  • Raptor Series: SAE J595 Certified

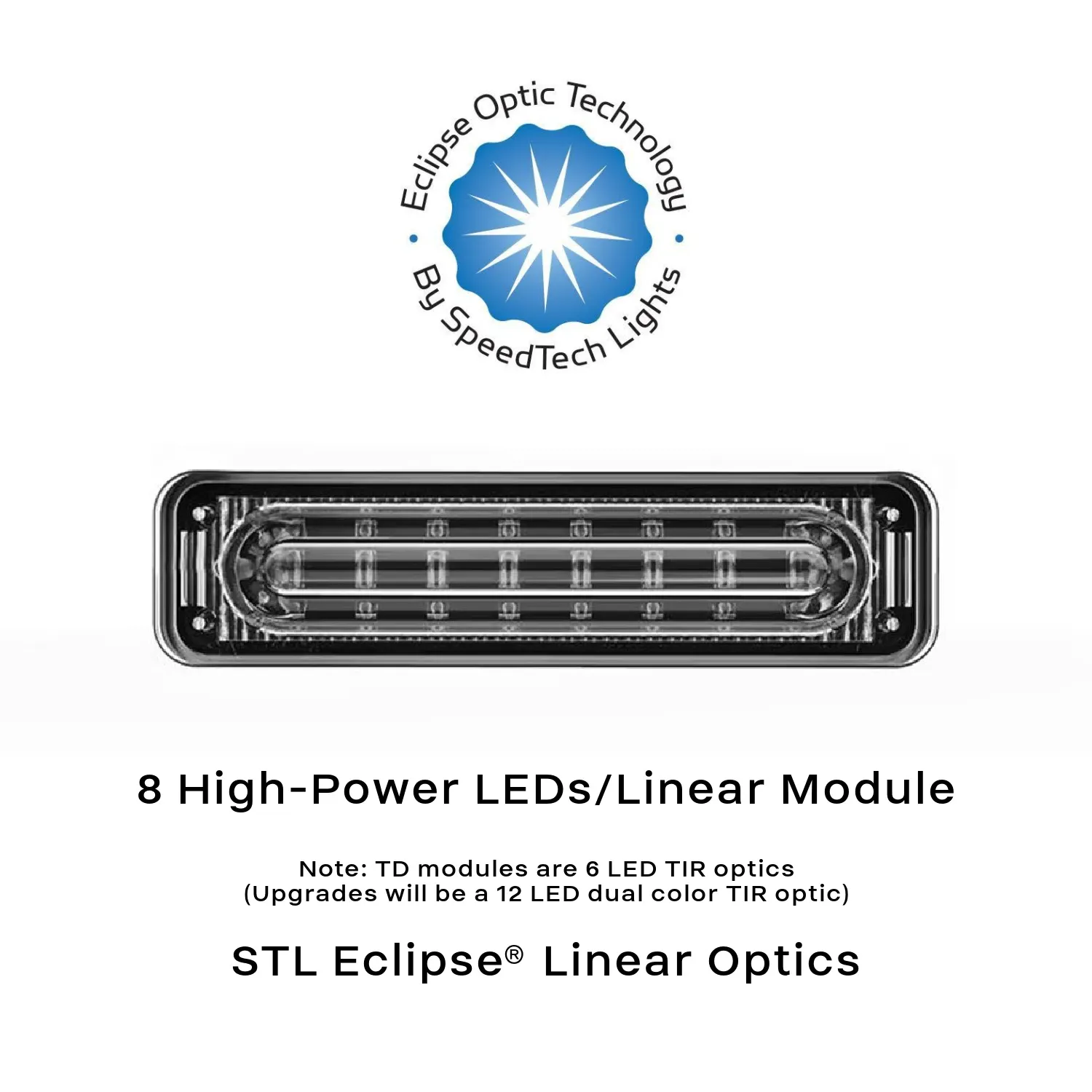

  • Patented LED Eclipse® Optic Technology - Linear Optics
  • 72 Total MaxGen® Linear 3-Watt LEDs
  • 8 MaxGen® TIR 3-Watt LEDs take-downs
  • 36 total flash patterns
  • 28 available flash patterns in MultiColor flash mode
  • 4 flash patterns in color 1 mode
  • 4 flash patterns in color 2 mode
  • Non-volatile memory recalls last flash pattern
  • One clear Take-down module steady burn or flash in each section
  • Optional Dual Color LED Take Down Module available for purchase (LED module flashes in light bar color/clear in flash mode then changes to clear when in take down mode)
  • Sleek, durable casing
  • Lifespan of up to 100,000 hours
  • Optional STL Grand Control available for purchase
  • Includes universal brackets
  • Optional vehicle specific brackets available for purchase
  • Built in windshield reflector
  • Optional windshield visor extender available for purchase

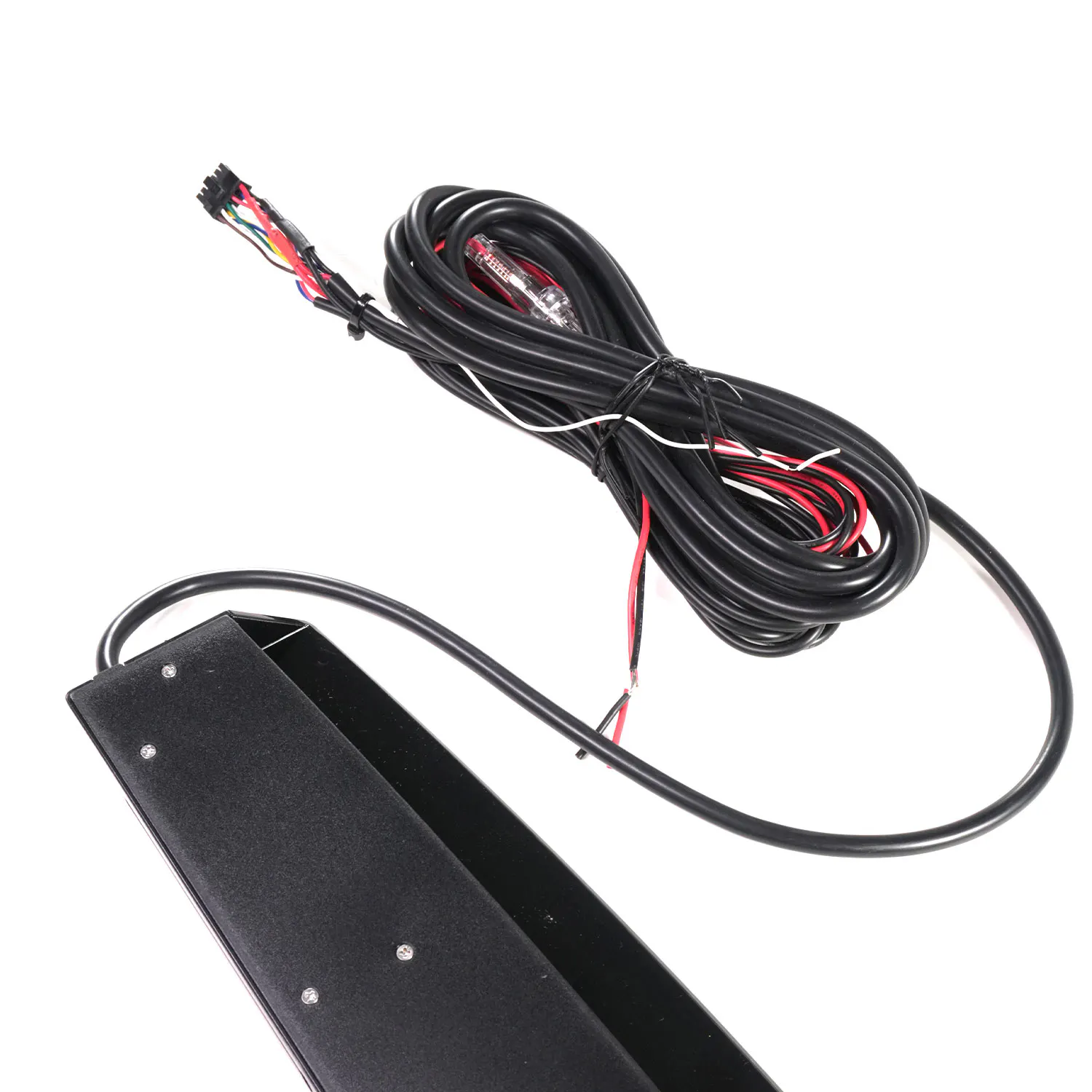

  • 12' of cable from light bar to connector
  • 12.5' of power cable from connector
  • 12.5' of auxiliary cable from connector
  • 4.2 Amp draw

*See Terms and Conditions

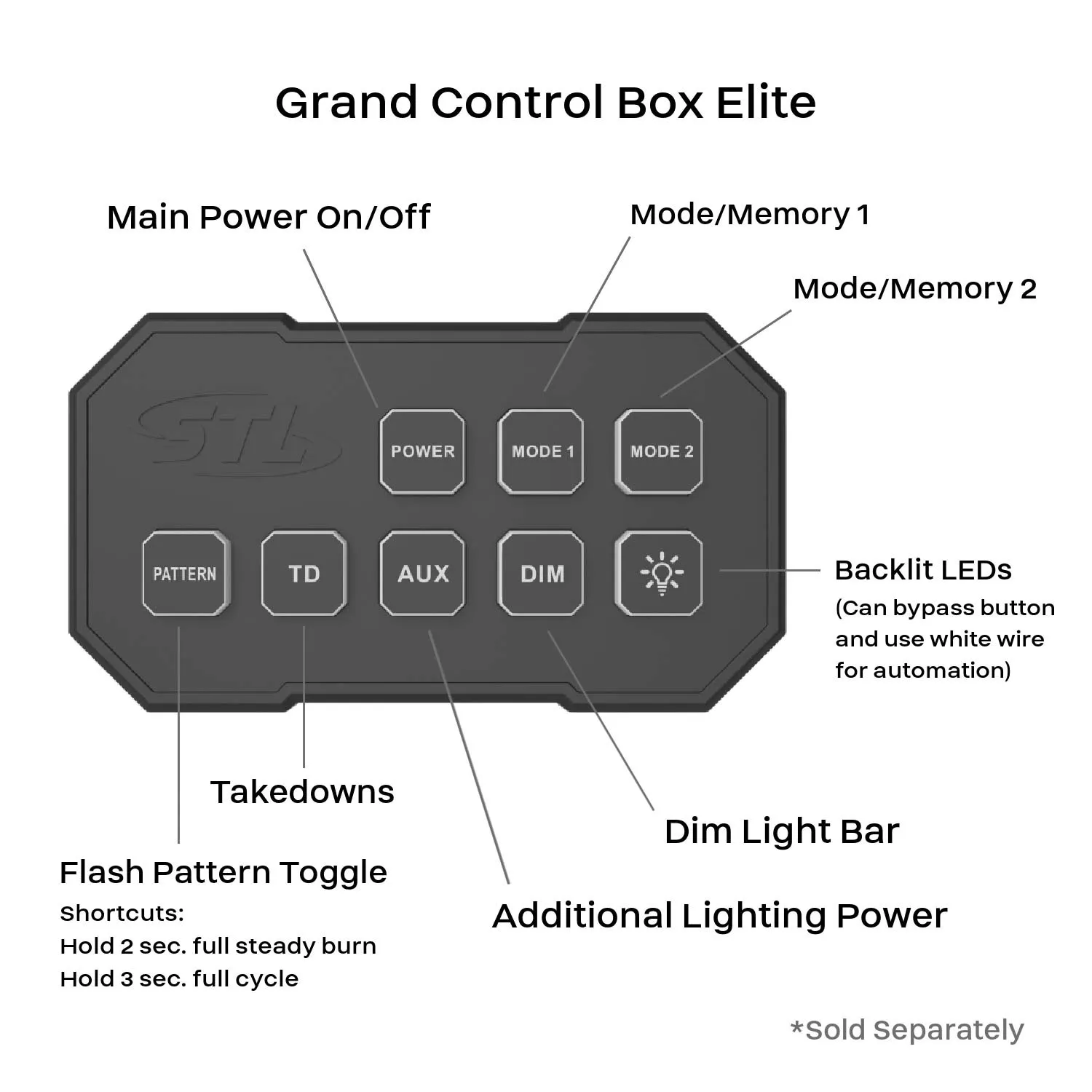

Night Mode w/ Optional Control Box (Sold Separately):
---Night Button Use = Toggle Night Mode on/off using Night Button while not hard-wiring the white cable.
---White Cable Use = Hardwire the free-standing white cable to your headlight +12VDC line to automate this feature. NOTE: This deactivates the usability of Night Button. Once hardwired, the Night button ceases to function. Make sure Night button is NOT activated before wiring white cable otherwise Night button will remain activated/illuminated.

What's included

  • Raptor Linear Visor Light Bar
  • 12' of Cable from Light Bar to Connector
  • 12.5' of Power Cable from Connector
  • 12.5' of Auxiliary Cable from Connector
  • Universal Headliner Brackets (unless different mounting option is selected in drop-down)
  • Grand Control Box
  • Cig-Plug vs Standard Hardwire
  • 10' Extension Cable
  • Vehicle Specific Headliner Brackets

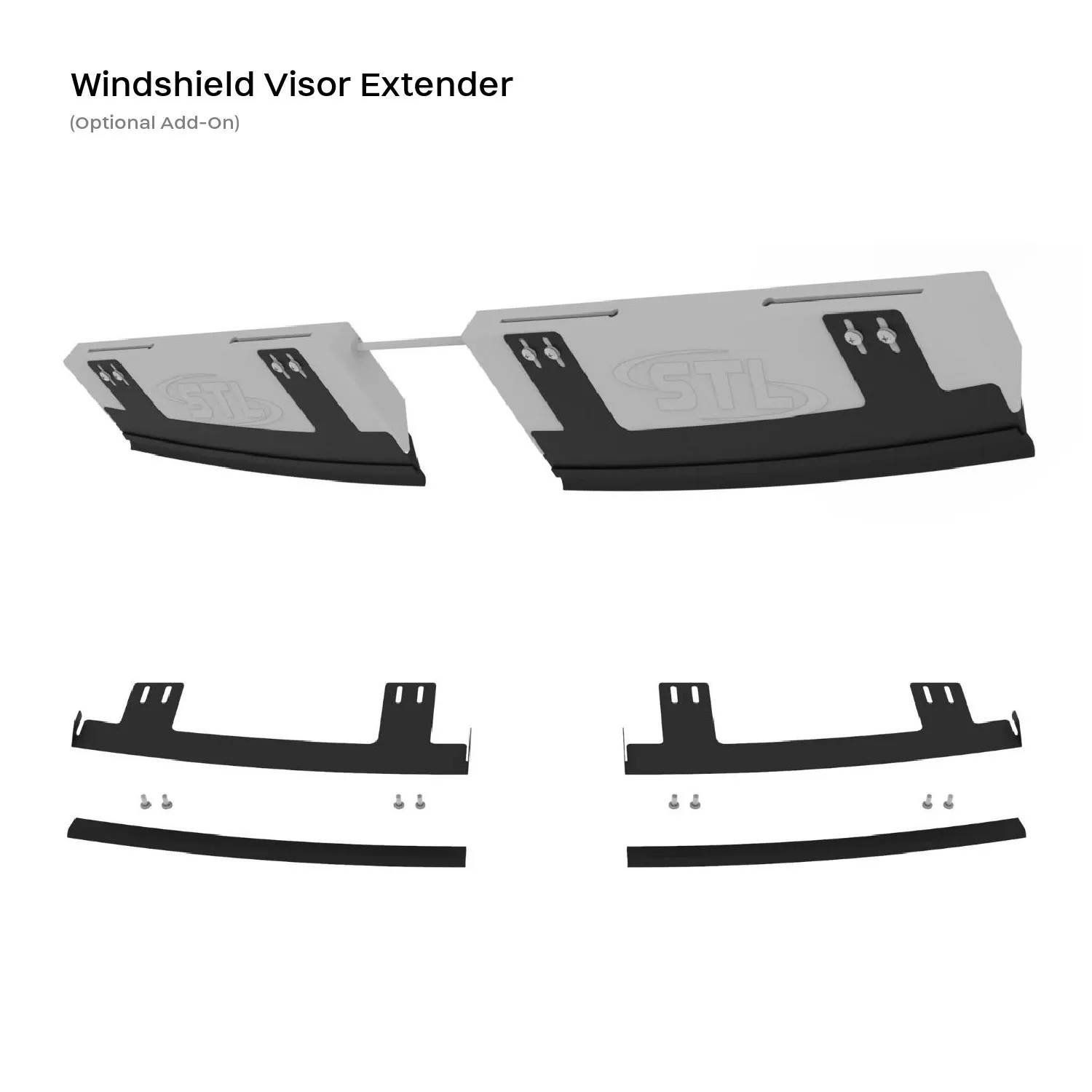

  • Windshield Visor Extender

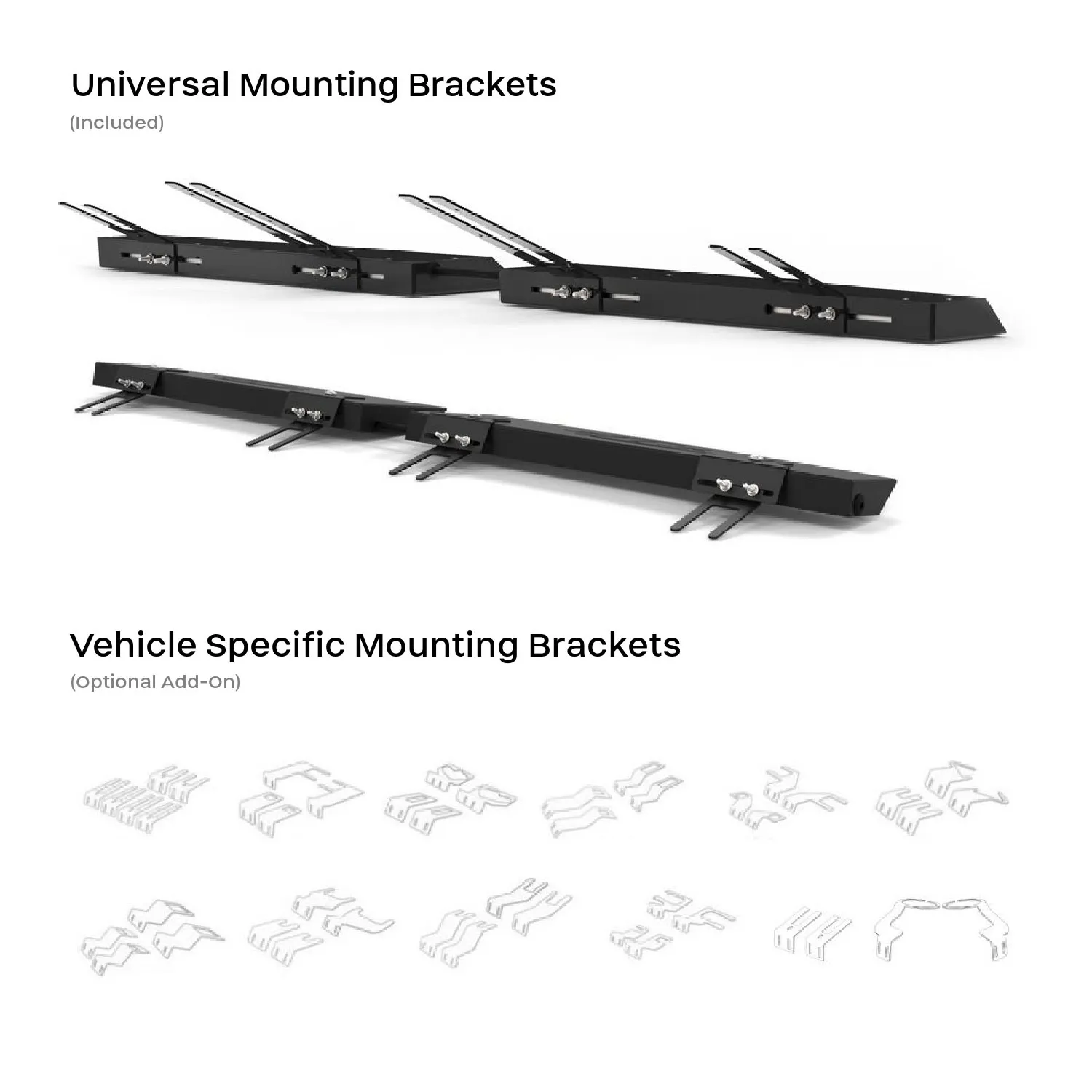

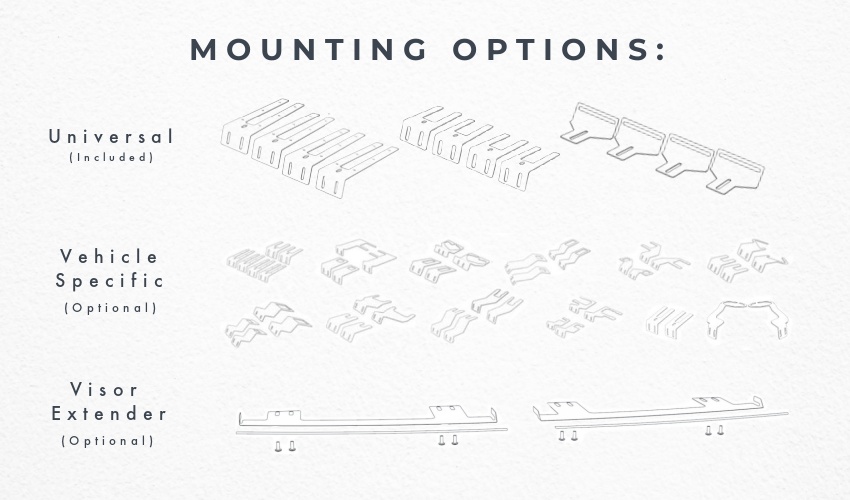

Mounting options
